DTC-D25-SIL-16

Артикул: 3343838

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

IL-K-1380

DIN CSW1

IL- IL16 L

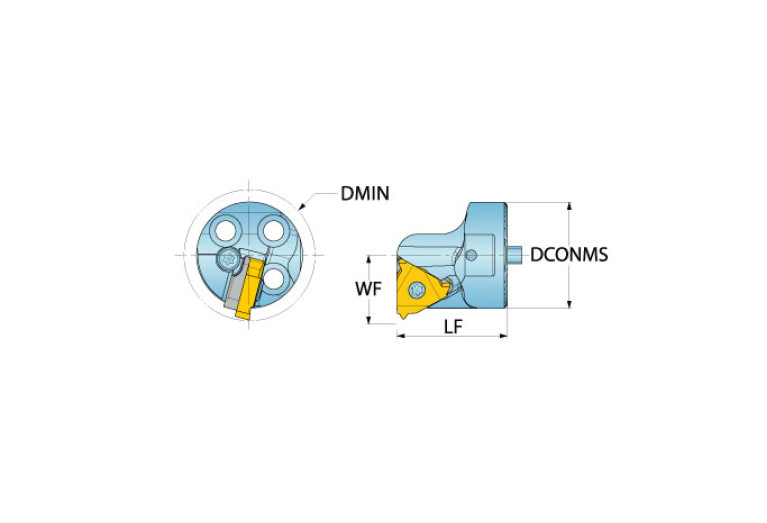

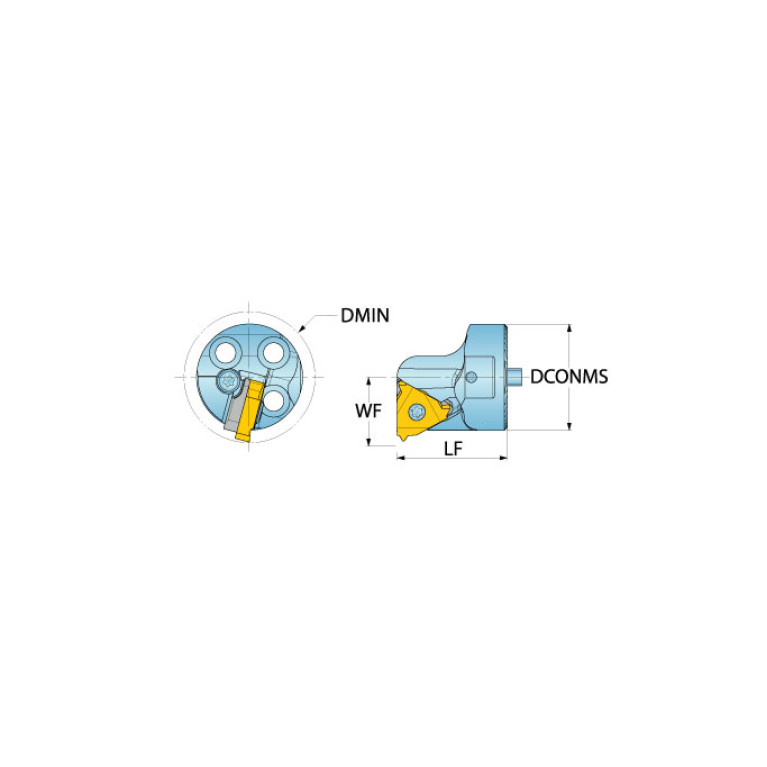

DMIN Minimum bore diameter

29 mm

FamilyProducts

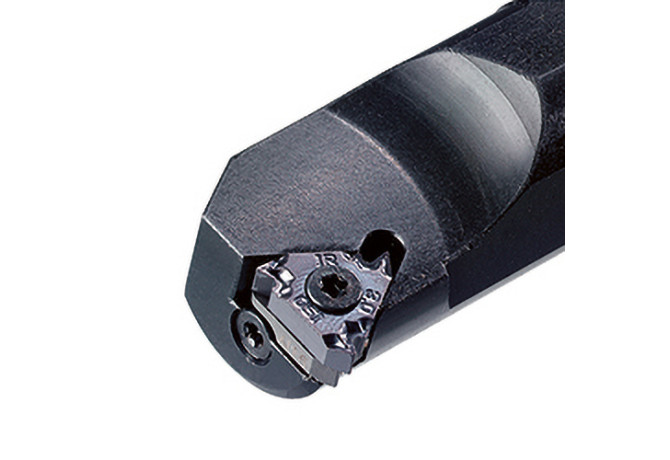

Modular screw type threading head for anti-vibration boring bar DTC-D SIL/R

HAND Cutting direction

L - Left

ID Technical product number

3343838

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-10 - System tool for internal threading

LF Functional length

26 mm

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CZCMS Connection size code

0250

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-K-1380

LPR Protruding length

26 mm

LTA Length tool assembly

26 mm

Name Identifying order number

DTC-D25-SIL-16

OAL Overall length

26 mm

WF Functional width

16.2 mm

Working process

DGI - Thread turning, internal

WT Weight of item

0.092 kg
