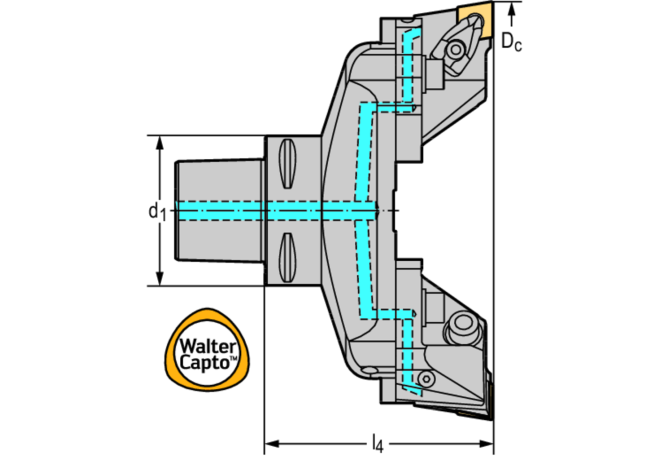

Главная Каталог продукции Toolunited 12 305-16 - Boring head B5460-148-200-C8-CN19

B5460-148-200-C8-CN19

Артикул: 8218133

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

1 - Radial adjustment possible

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCN Cutting diameter minimum

148 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

200 mm

Delivery state valid from

12/1/2023

DIN

CCS08000195

DIN CSW1

CN1906992N

FamilyProducts

Double-edged boring tool B5460

HAND Cutting direction

R - Right

ID Technical product number

8218133

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

CCS01C0800$$$$

ISO CSW1

ISO$CN1906002******

ISYC Subclass

305-16 - Boring head

KAPR Tool cutting edge angle

90 Degree

LF Functional length

122 mm

LOC-01 ISO

ISO$CN1906002******

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

CN1906992N

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0800

LOC-03 DCONMS Diameter

80 mm

LOC-03 ISO

CCS01C0800$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS08000195

LPR Protruding length

122 mm

LS Shank length

48 mm

MIID Master insert identification

CNMG 19 06 12

Name Identifying order number

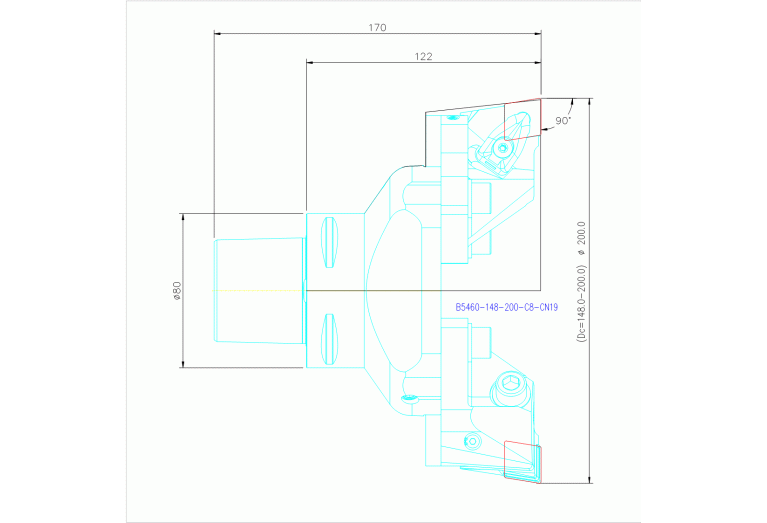

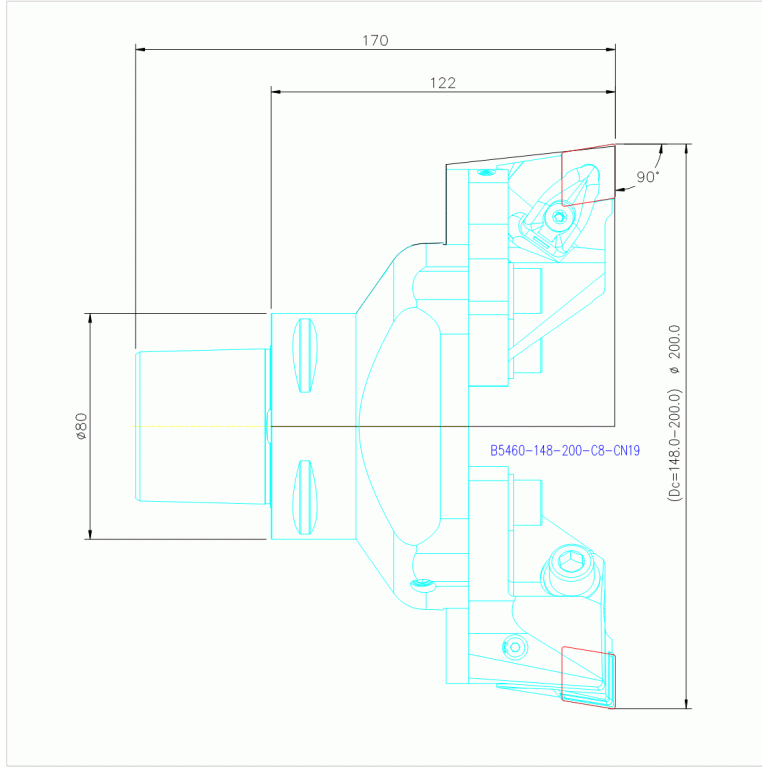

B5460-148-200-C8-CN19

OAL Overall length

170 mm

RPMX Rotational speed maximum

2581 1/min

Working process

BAB - Open by boring

WT Weight of item

7.05 kg

ZEFP Peripheral effective cutting edge count
