Главная Каталог продукции Toolunited 12 306-02 - Step drill DCNT 102-030-16A-M12

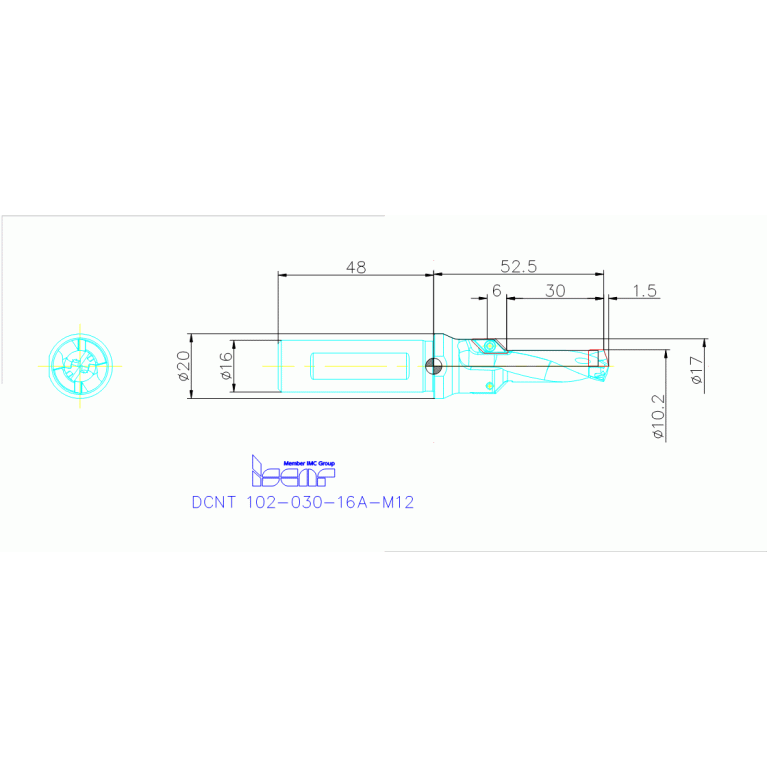

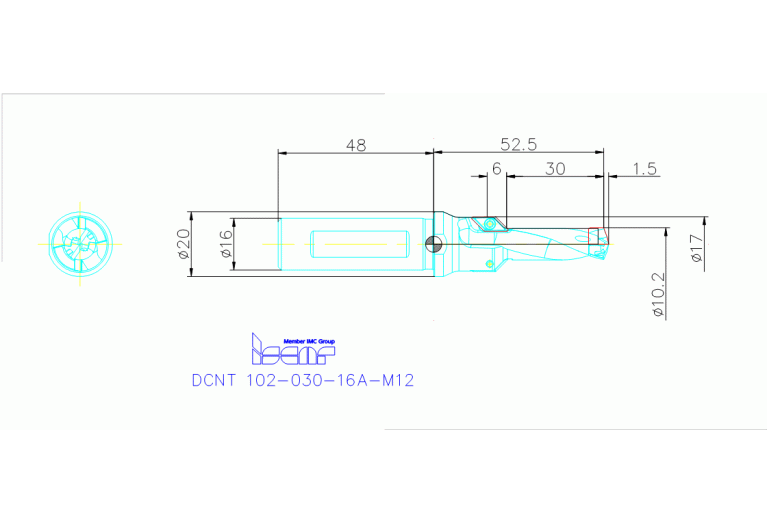

DCNT 102-030-16A-M12

Артикул: 3260257

В наличии

В корзину

Описание

Характеристики

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

CEDC Cutting edge count step

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

10 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

10.4 mm

Delivery state valid from

4/1/2022

DIN

ZYL01601115

FamilyProducts

Exchangeable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes

FHA Flute helix angle

25 Degree

HAND Cutting direction

R - Right

ID Technical product number

3260257

Interface codes

J6 / J61

ISO

ZYL11G1600h$06

ISYC Subclass

306-02 - Step drill

LF Functional length

52.5 mm

LOC-01 BI Block index

LOC-01 ISO

IS$$226983535368603

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-226983535368603

LOC-02 BI Block index

LOC-02 ISO

IS$$258649559022400

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-258649559022400

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL11G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01601115

LS Shank length

48 mm

LU Usable length

37.5 mm

Name Identifying order number

DCNT 102-030-16A-M12

NOS Step count

OAL Overall length

102 mm

PL Point length

1.5 mm

SDL Step diameter length

30 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
