Главная Каталог продукции Toolunited 12 306-02 - Step drill DCNT 068-021-12A-M8

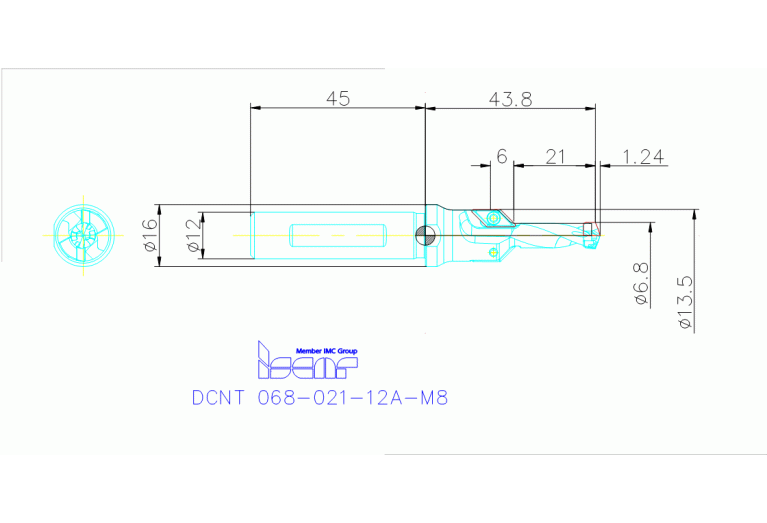

DCNT 068-021-12A-M8

Артикул: 3260255

В наличии

В корзину

Описание

Характеристики

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

CEDC Cutting edge count step

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

6.5 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

6.9 mm

Delivery state valid from

4/1/2022

DIN

ZYL01201115

FamilyProducts

Exchangeable Head Drills with Chamfering Inserts Mainly for Pre-Thread Holes

FHA Flute helix angle

25 Degree

HAND Cutting direction

R - Right

ID Technical product number

3260255

Interface codes

J6 / J61

ISO

ZYL11G1200h$06

ISYC Subclass

306-02 - Step drill

LF Functional length

43.8 mm

LOC-01 BI Block index

LOC-01 ISO

IS$$135586540199159

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-135586540199159

LOC-02 BI Block index

LOC-02 ISO

IS$$217664100413785

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-217664100413785

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL11G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01201115

LS Shank length

45 mm

LU Usable length

28.2 mm

Name Identifying order number

DCNT 068-021-12A-M8

NOS Step count

OAL Overall length

90 mm

PL Point length

1.24 mm

SDL Step diameter length

21 mm

SIG Point angle 1st step

140 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available
