Главная Каталог продукции Toolunited 12 401-03 - Extender MM CAB T15T15-45/1.77-C

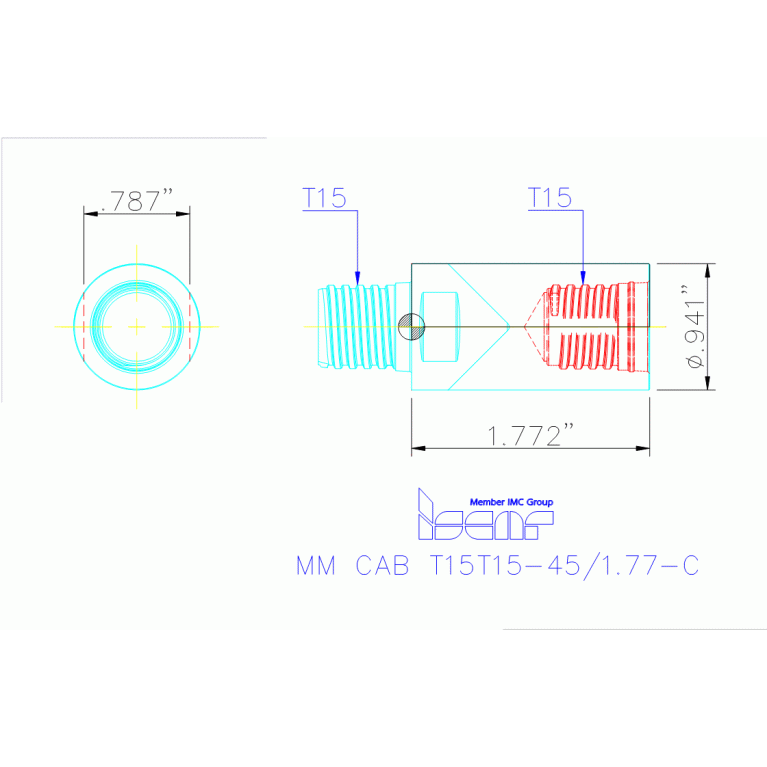

MM CAB T15T15-45/1.77-C

Артикул: 3105707

В наличии

В корзину

Описание

Характеристики

BD Body diameter

23.9 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SAI

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0150

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAI01500185

FamilyProducts

MULTI-MASTER Shank Extensions

HAND Cutting direction

R - Right

ID Technical product number

3105707

Interface codes

J6 / J61

ISO

SAI01C0150h$06

ISYC Subclass

401-03 - Extender

LF Functional length

45 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SAI Screw mounting ISCAR

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01 CZCWS Connection size code

0150

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SAI01500185

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0150

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

SAI01C0150h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01500185

LS Shank length

17.6 mm

Name Identifying order number

MM CAB T15T15-45/1.77-C

OAL Overall length

62.6 mm

TCDCON ISO-tolerance class connection bore diameter

TCDCONMS ISO-tolerance class shank diameter

THSZWS Connection thread nominal size workpiece side

T15

WT Weight of item

0.21 kg
