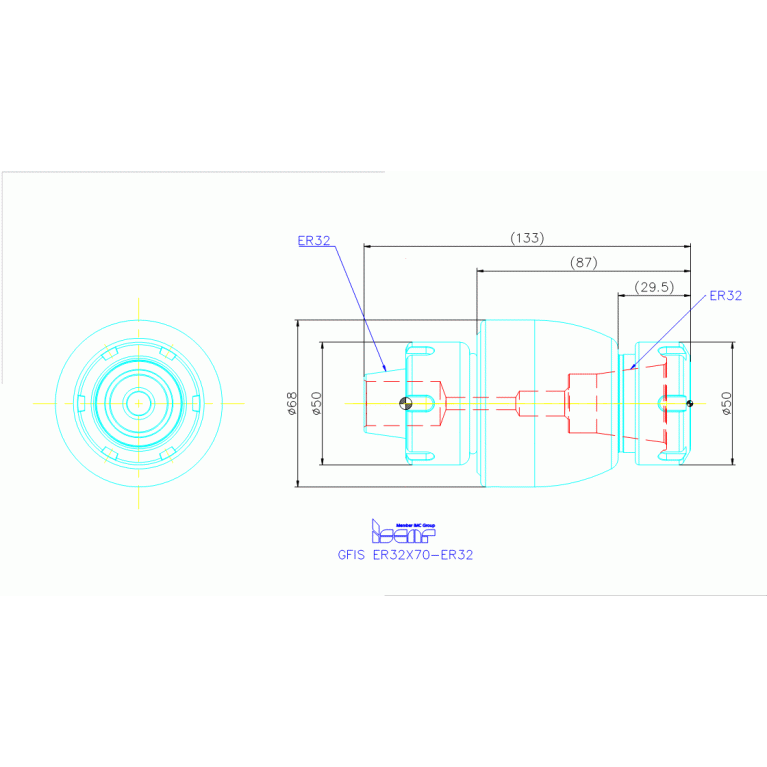

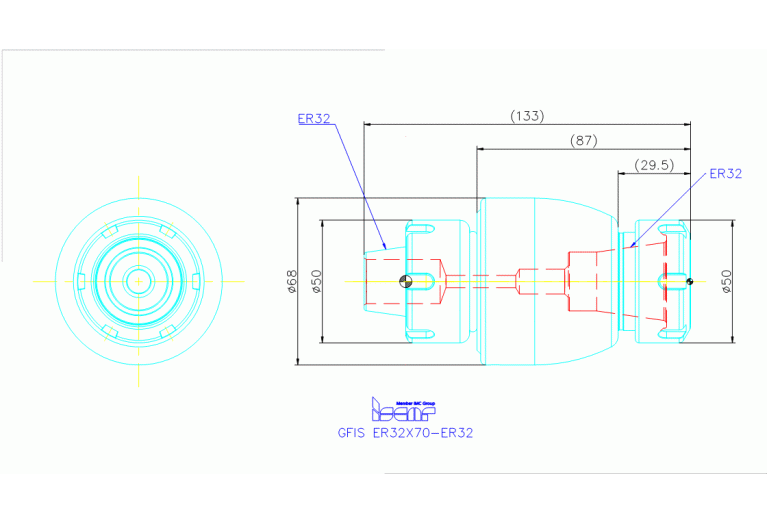

GFIS ER32X70-ER32

Артикул: 4548175

В наличии

В корзину

Описание

Характеристики

BD Body diameter

50 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

SZD

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SZD03200285

FamilyProducts

Floating Reamer ER Collet Chuck with ER Shank for High Speed Cutting Reamers

ID Technical product number

4548175

Interface codes

J6 / J61

ISO

SZD02C0320$$$$

ISYC Subclass

401-03 - Extender

LB Body length 1

29.5 mm

LF Functional length

87 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

SZD Collet adapter DIN / ISO

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01 CZCWS Connection size code

0320

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SZD03200285

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0320

LOC-03 ISO

SZD02C0320$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200285

LPR Protruding length

87 mm

Name Identifying order number

GFIS ER32X70-ER32

OAL Overall length

133 mm

WT Weight of item

1.69 kg
