KAV-G20-10D
KAV-G20-10D
Артикул:
THC15264
В наличии
Характеристики
BD Body diameter
20 mm
CCFWS Connection code form
01
CCSWS Connection code style
7
CCTWS Connection code type
CMS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCP Data chip provision
0 - Without data chip
Delivery state valid from
01
DIN
ZYL02000115
FamilyProducts
Anti-vibration interchangeable head mechanism Boring Bar Shank KAV
HAND Cutting direction
N - Neutral
ID Technical product number
THC15264
Interface codes
J6 /
ISYC Subclass
401-02 - Converter, stationary

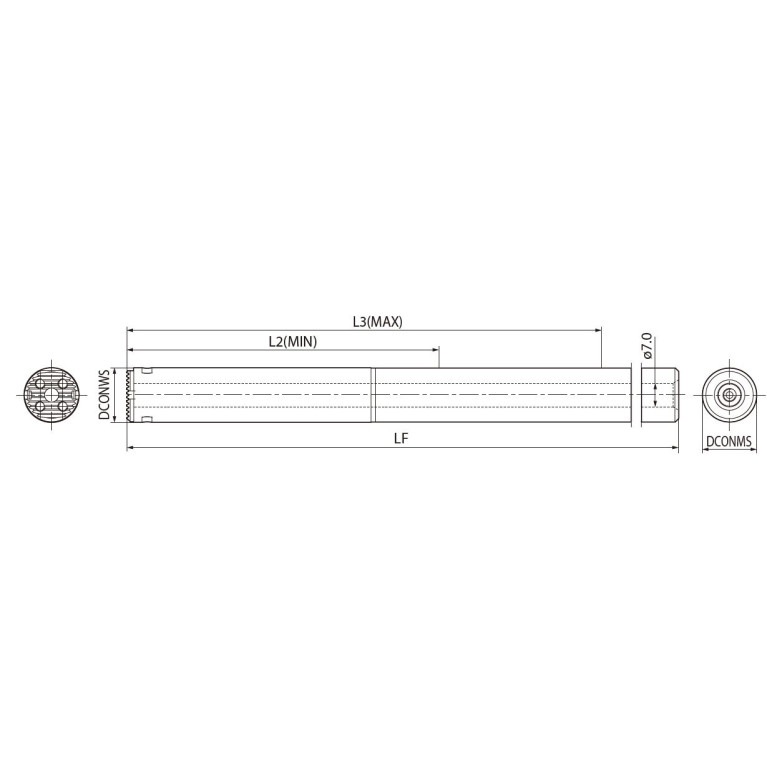

LF Functional length
261.5 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
7 Serrated connection
LOC-01 CCTWS Connection code type
CMS Coromant Modular boring SANDVIK
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS02000197
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
LPR Protruding length
120 mm
LS Shank length
141.5 mm
Name Identifying order number
KAV-G20-10D
OAL Overall length
261.5 mm
