Главная Каталог продукции Toolunited 12 401-02 - Converter, stationary HSK A63WH-ASHL-25-3

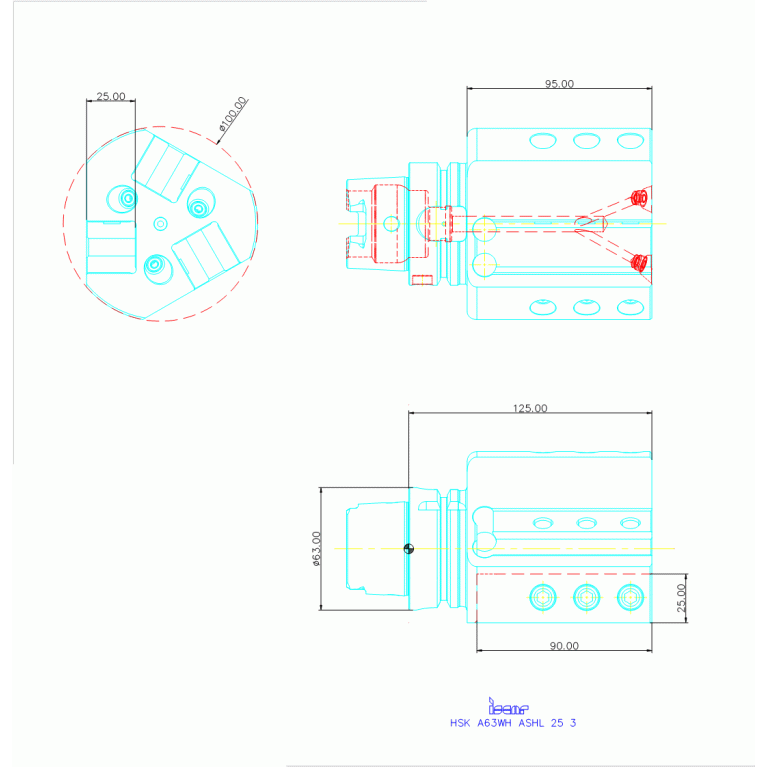

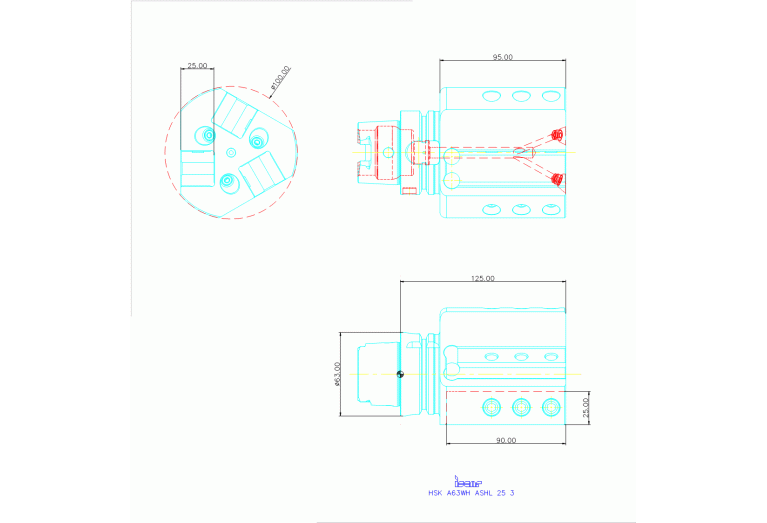

HSK A63WH-ASHL-25-3

Артикул: 4505081

В наличии

В корзину

Описание

Характеристики

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

COMPC Company code

IS - Iscar

CZCWS Connection size code

2525

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK06300195

FamilyProducts

Triple Square Shank Tool Adapters with HSK Exchangeable Shanks for Mounting on Turn-Mill Machines

HAND Cutting direction

L - Left

ID Technical product number

4505081

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

2525

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT25250115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR Protruding length

125 mm

Name Identifying order number

HSK A63WH-ASHL-25-3

OAL Overall length

157 mm

WF Functional width

13 mm

WT Weight of item

3.55 kg
