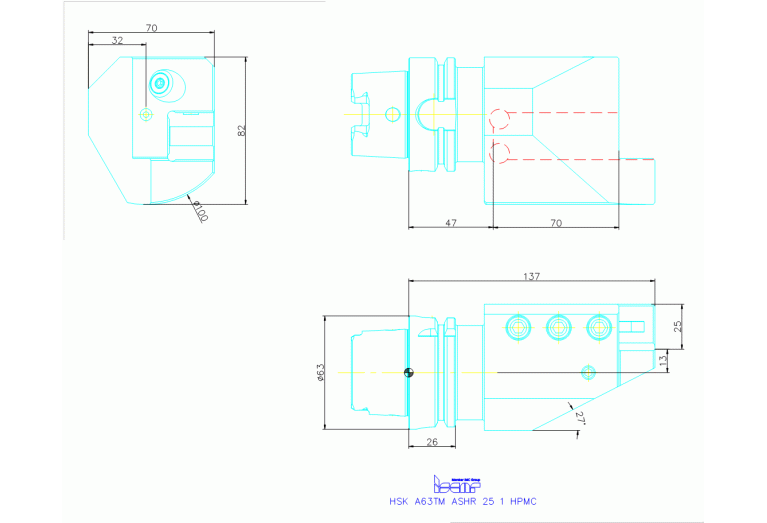

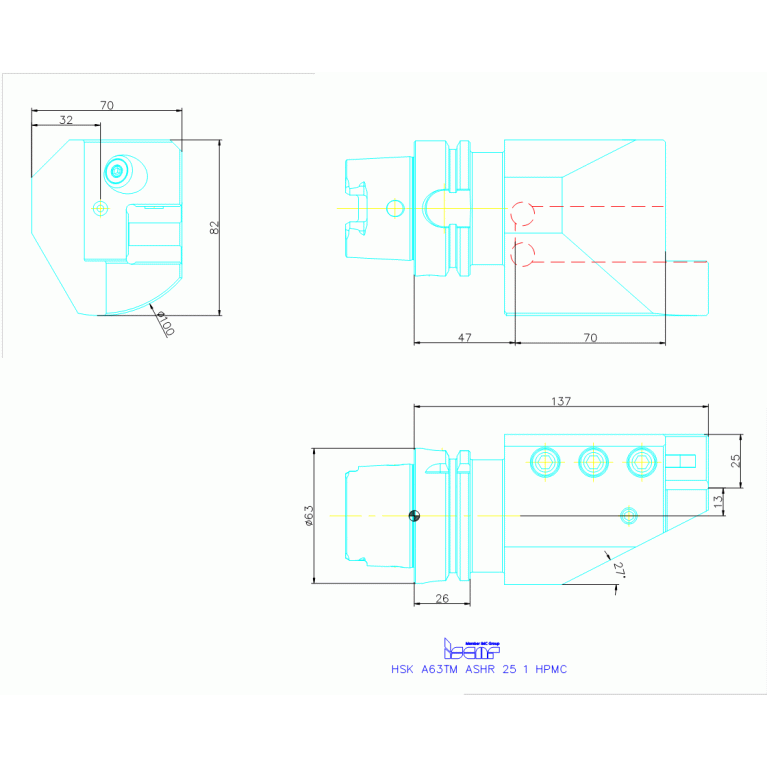

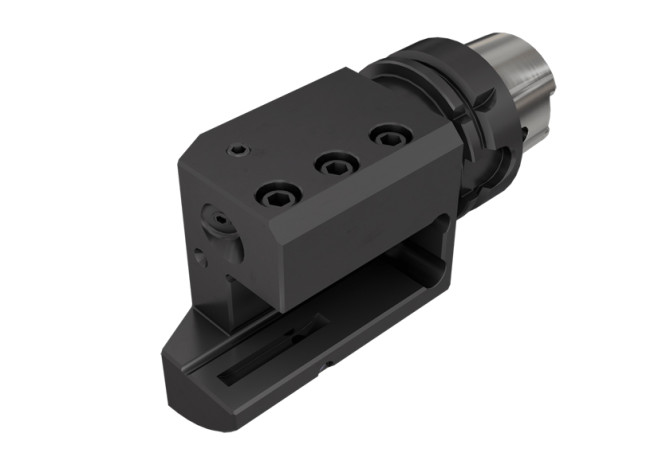

HSK A63TM ASHR 25 1 HPMC

Артикул: 3347956

В наличии

В корзину

Описание

Характеристики

BD Body diameter

100 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

CZCWS Connection size code

2525

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK06300195

FamilyProducts

Square Shank Tool Adapters with HSK Exchangeable Shanks for Multi-Tasking Machines with High-Pressure Coolant Channels

HAND Cutting direction

R - Right

HF Functional height

25 mm

ID Technical product number

3347956

Interface codes

J6 / J61

ISO

HSK01C0630$$$$

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

47 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

2525

LOC-01 ISO

VKT01A2525$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT25250115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 ISO

HSK01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

LPR Protruding length

137 mm

Name Identifying order number

HSK A63TM ASHR 25 1 HPMC

OAH Overall height

82 mm

OAL Overall length

157 mm

OAW Overall width

70 mm

RADW Radial width

38 mm

WF Functional width

13 mm
