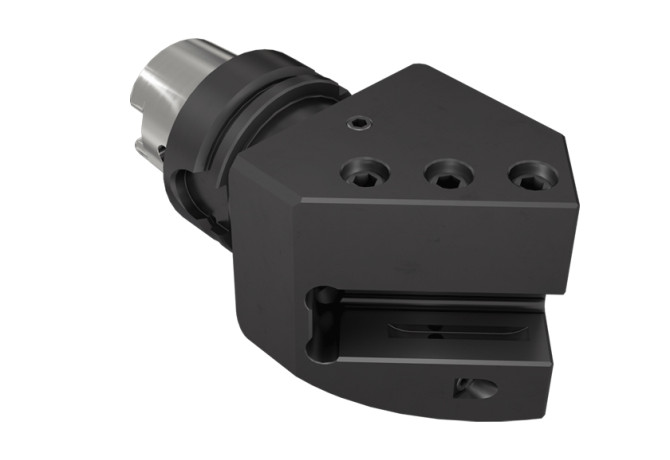

HSK A63TM ASHL 25 45 HPMC

Артикул: 3347958

В наличии

В корзину

Описание

Характеристики

BD Body diameter

100 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK06300195

FamilyProducts

Square Shank Tool Adapters with HSK-T Exchangeable Shanks for 45° Mounting on Multi-Tasking Machines

HAND Cutting direction

L - Left

HF Functional height

25 mm

ID Technical product number

3347958

Interface codes

J6 /

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300195

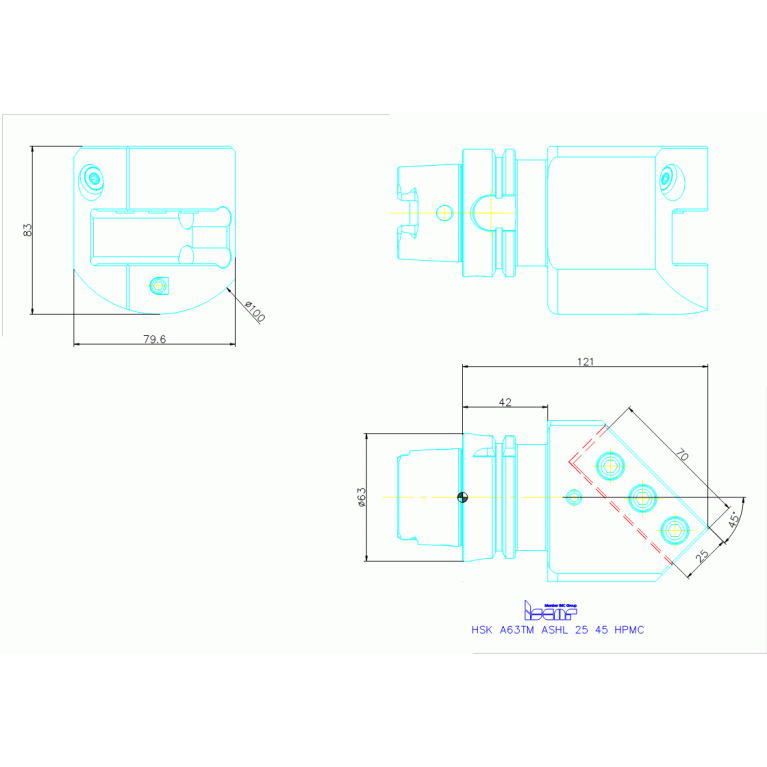

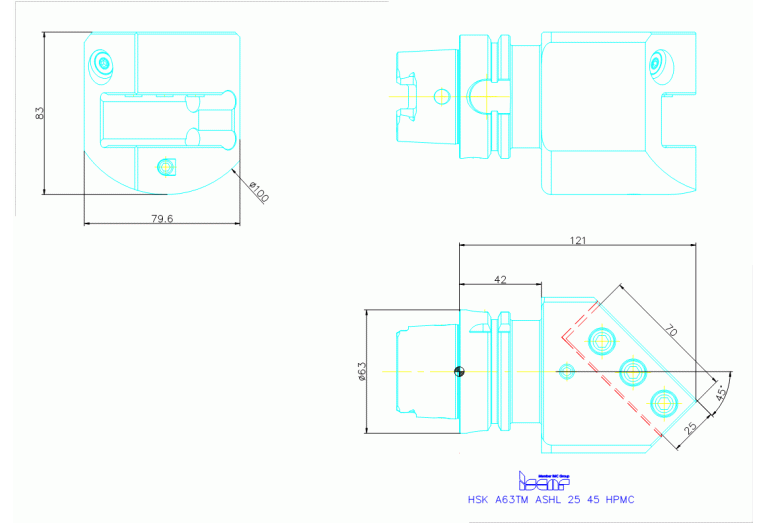

LPR Protruding length

121 mm

Name Identifying order number

HSK A63TM ASHL 25 45 HPMC

OAH Overall height

58 mm

OAL Overall length

142 mm

OAW Overall width

79.6 mm

RADW Radial width

38 mm

WF Functional width

15 mm
