Главная Каталог продукции Toolunited 12 401-02 - Converter, stationary HSK A100WH ASHL 32 1

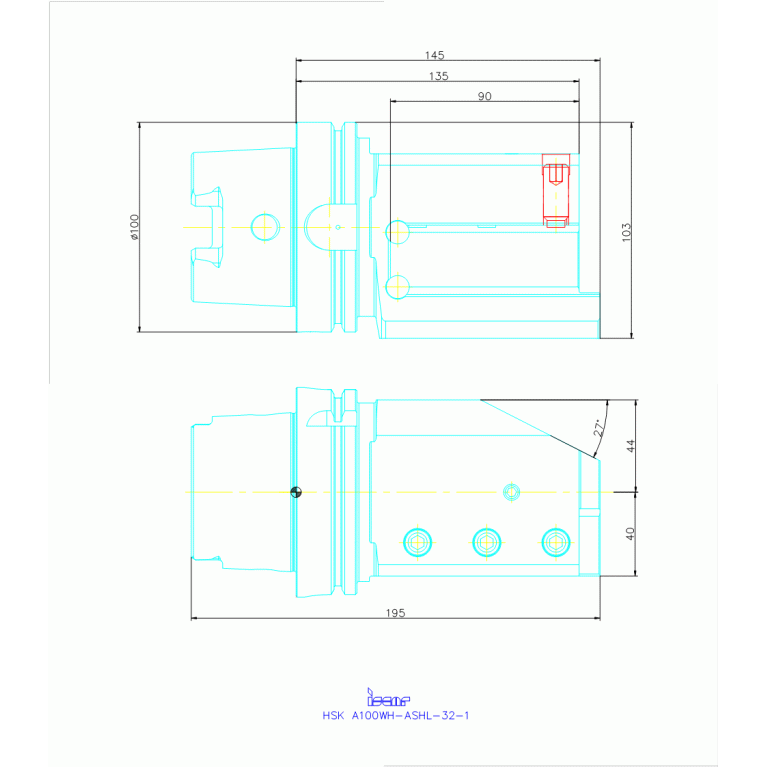

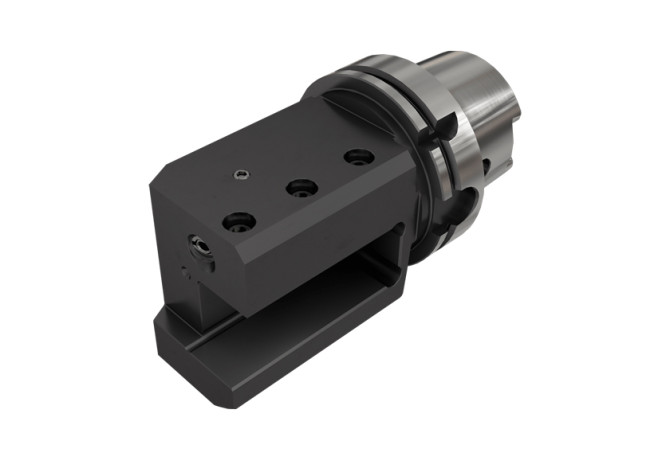

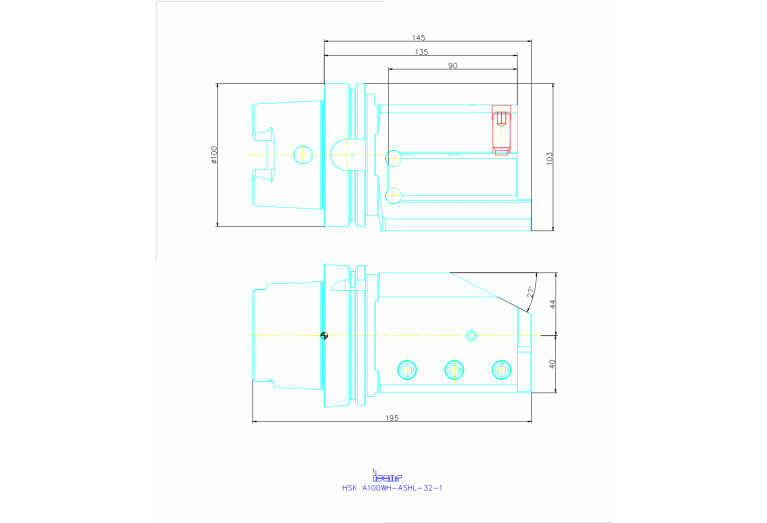

HSK A100WH ASHL 32 1

Артикул: 4509931

В наличии

В корзину

Описание

Характеристики

BD Body diameter

100 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

3232

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

HSK10000185

FamilyProducts

Square Shank Tool Adapters with HSK Exchangeable Shanks for Turn-Mill Machines

HAND Cutting direction

L - Left

ID Technical product number

4509931

Interface codes

J6 / J61

ISO

HSK01C1000$$$$

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

45 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

3232

LOC-01 ISO

VKT01A3232$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

VKT32320105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

1000

LOC-03 ISO

HSK01C1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK10000185

LPR Protruding length

145 mm

Name Identifying order number

HSK A100WH ASHL 32 1

OAH Overall height

85 mm

OAL Overall length

195 mm

OAW Overall width

84 mm

RADW Radial width

40 mm

WF Functional width

8 mm

WT Weight of item

6.43 kg
