Главная Каталог продукции Toolunited 12 401-02 - Converter, stationary C6-SH-D40-4D-JHP

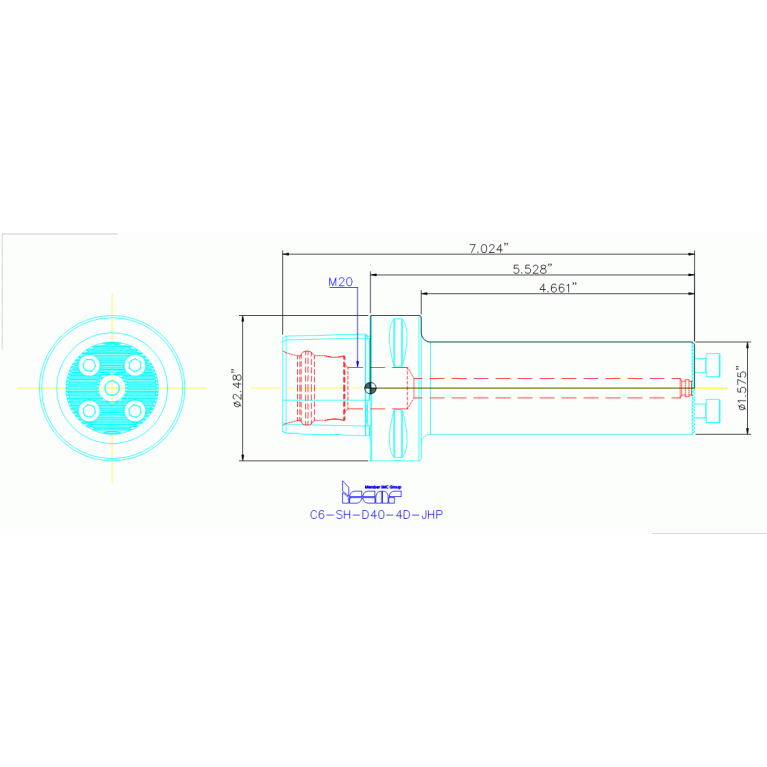

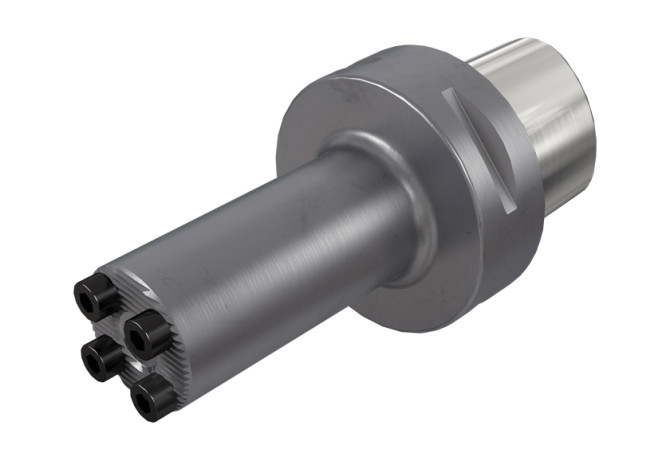

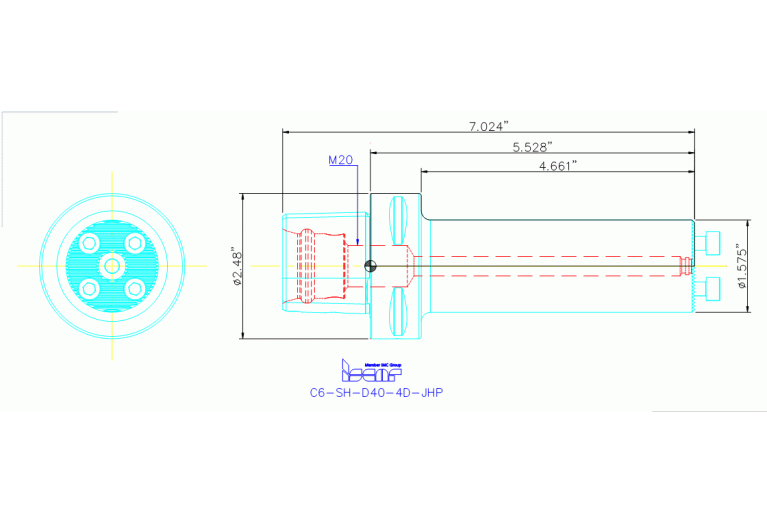

C6-SH-D40-4D-JHP

C6-SH-D40-4D-JHP C6-SH-D40-4D-JHP C6-SH-D40-4D-JHP

C6-SH-D40-4D-JHP

Iscar
Артикул: 3373622
В наличии
В корзину
Описание
Характеристики
CCFWS Connection code form
01
CCSWS Connection code style
7
CCTWS Connection code type
CMS
CCUWS Connection code unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0400
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
CCS06300195
FamilyProducts
Serrated Connection Shanks with a CAMFIX Exchangeable Adaptation
ID Technical product number
3373622
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
ISYC Subclass
401-02 - Converter, stationary
LB Body length 1
118 mm
LF Functional length
140 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
7 Serrated connection
LOC-01 CCTWS Connection code type
CMS Coromant Modular boring SANDVIK
LOC-01 CCUWS Connection code unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Connection size code
0400
LOC-01 ISO
CMS01C0400$$$$
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
CMS04000197
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
140 mm
Name Identifying order number
C6-SH-D40-4D-JHP
