Главная Каталог продукции Toolunited 12 401-02 - Converter, stationary C6 ABB-25-60

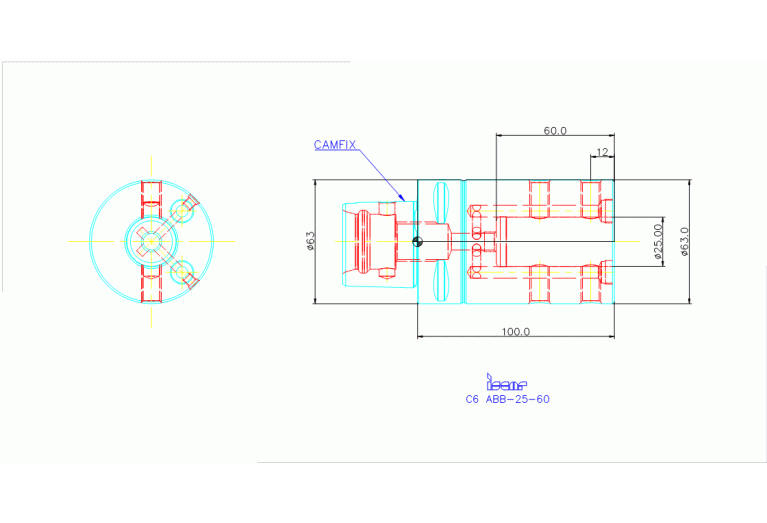

C6 ABB-25-60

Артикул: 4509551

В наличии

В корзину

Описание

Характеристики

BD Body diameter

63 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

CZCWS Connection size code

0250

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS06300195

FamilyProducts

Adapters with CAMFIX Exchangeable Shanks for Boring Bars with Reduction Sleeves

ID Technical product number

4509551

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

ISYC Subclass

401-02 - Converter, stationary

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0250

LOC-01 ISO

ZYL22G2500h$06

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL02502215

LOC-02 CCFWS Connection code form

LOC-02 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Connection code type

ZYL cylindrical shank

LOC-02 CCUWS Connection code unit base

1 Metric with coolant

LOC-02 CZCWS Connection size code

0250

LOC-02 ISO

ZYL11G2500h$06

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL02501115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

100 mm

Name Identifying order number

C6 ABB-25-60

OAL Overall length

138 mm

WT Weight of item

2.41 kg
