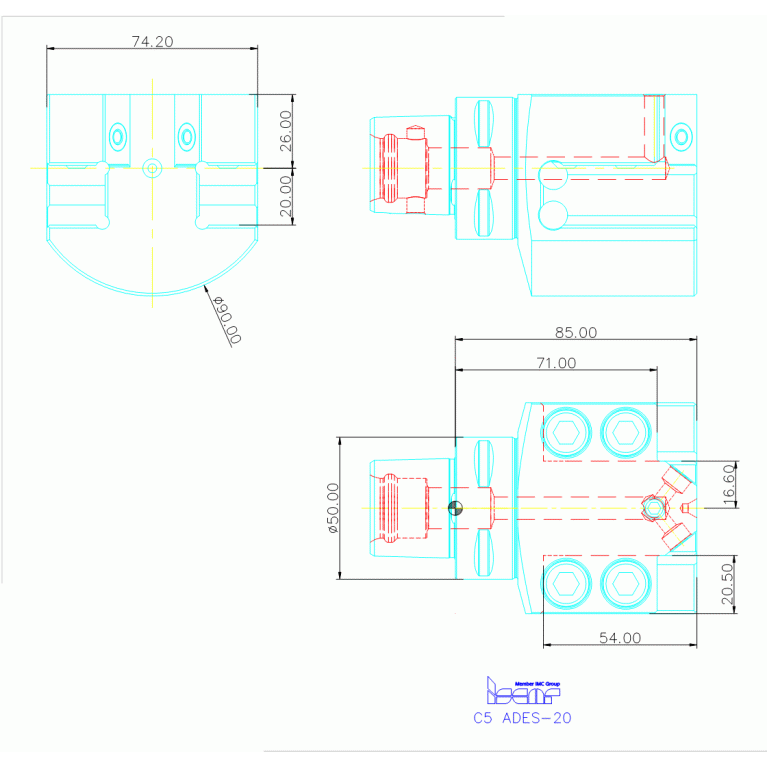

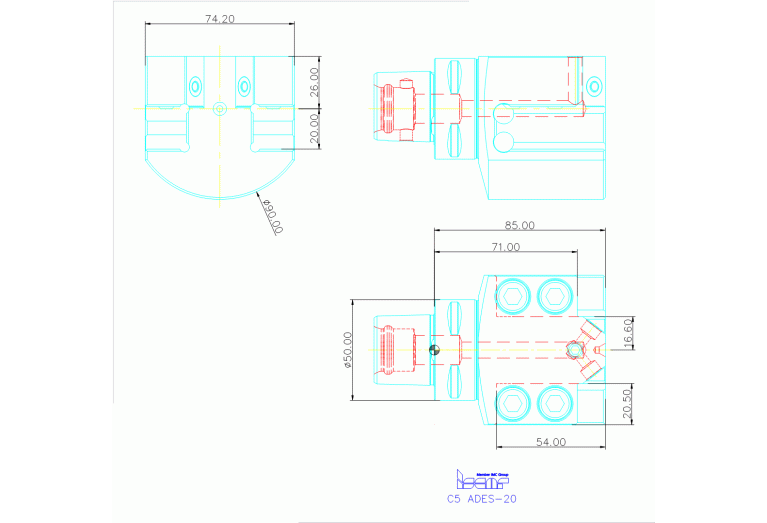

C5 ADES-20

Артикул: 4500462

В наличии

В корзину

Описание

Характеристики

BD Body diameter

90 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

VKT

COMPC Company code

IS - Iscar

CZCWS Connection size code

2020

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

Holders with CAMFIX Exchangeable Shanks for External Square Shank Tools

ID Technical product number

4500462

Interface codes

ISYC Subclass

401-02 - Converter, stationary

LF Functional length

71 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

VKT Square mounting

LOC-01 CZCWS Connection size code

2020

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

85 mm

Name Identifying order number

C5 ADES-20

OAL Overall length

115 mm

WT Weight of item

2.12 kg
