Главная Каталог продукции Toolunited 12 307-06 - Threading end mill MTSR 0031 R16

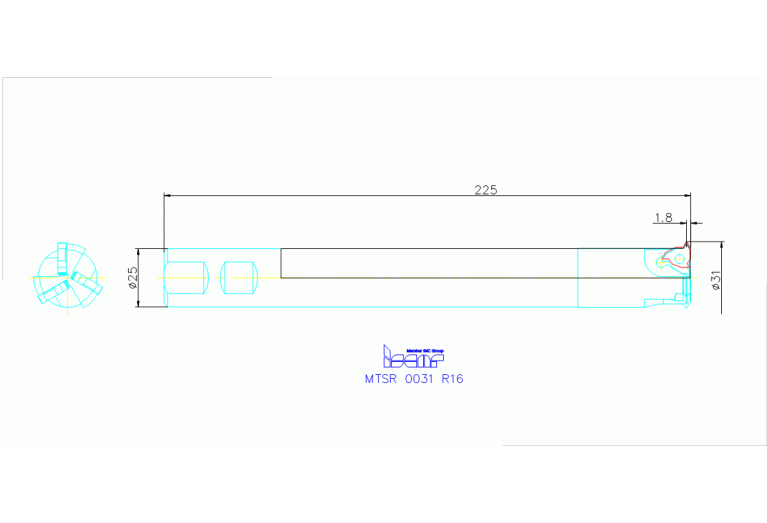

MTSR 0031 R16

Артикул: 3106951

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

31 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Indexable Multi-Insert Threading Endmills with Weldon Shanks for Single Point Inserts

HAND Cutting direction

R - Right

ID Technical product number

3106951

Interface codes

ISYC Subclass

307-06 - Threading end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LS Shank length

60 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

MTSR 0031 R16

OAL Overall length

225 mm

Working process

No working processes available

WT Weight of item

0.76 kg

ZEFP Peripheral effective cutting edge count
