Главная Каталог продукции Toolunited 12 307-06 - Threading end mill MTE D40-2-W32-30

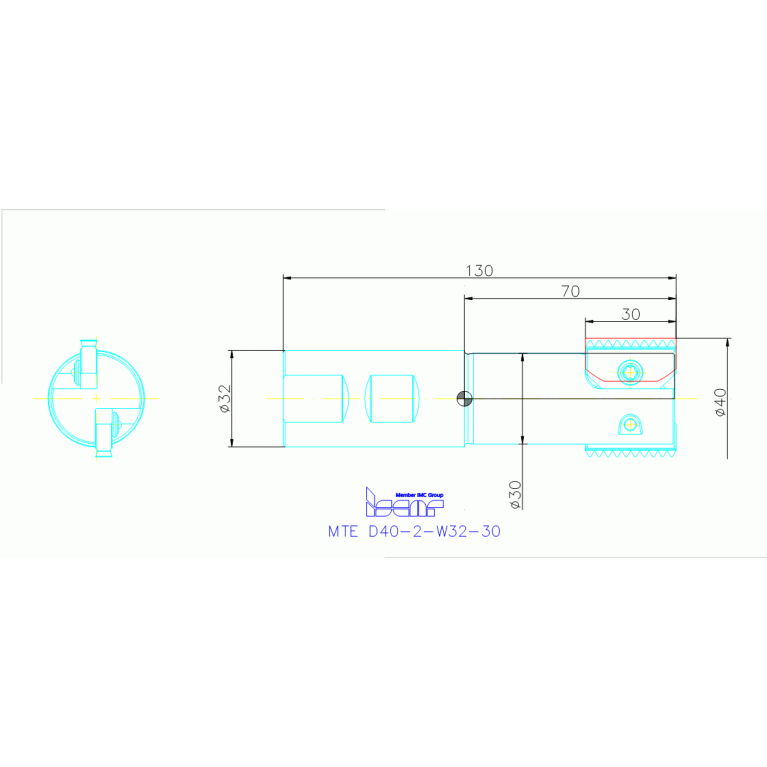

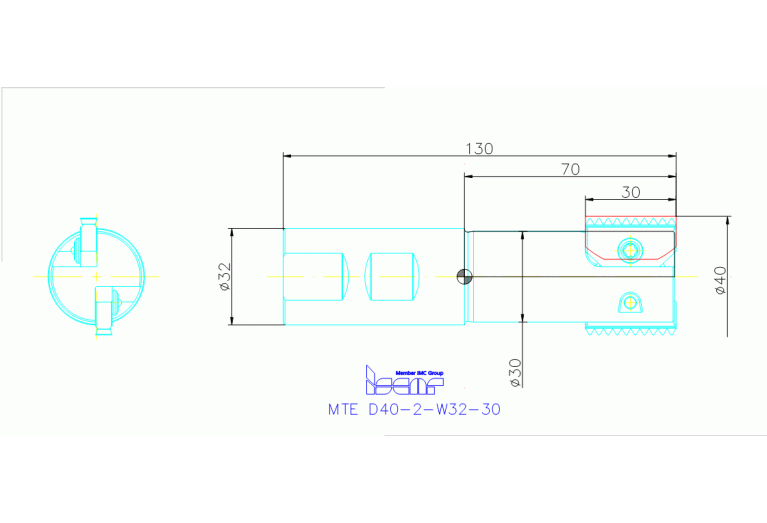

MTE D40-2-W32-30

Артикул: 3346850

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

30 mm

BD Body diameter

30 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

IS - Iscar

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Multi Insert Threading Endmills with Weldon Shanks

ID Technical product number

3346850

Interface codes

ISYC Subclass

307-06 - Threading end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LU Usable length

70 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

MTE D40-2-W32-30

OAL Overall length

130 mm

Working process

No working processes available

WT Weight of item

0.7 kg

ZEFP Peripheral effective cutting edge count
