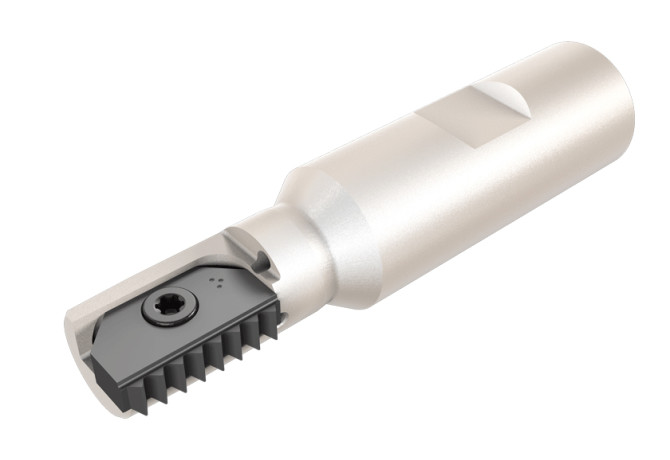

MTE D38-1-W32-30

Артикул: 3323453

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

30 mm

BD Body diameter

32 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

IS - Iscar

DC Cutting diameter

38 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Indexable Threading Endmills

ID Technical product number

3323453

Interface codes

ISYC Subclass

307-06 - Threading end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LU Usable length

86 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

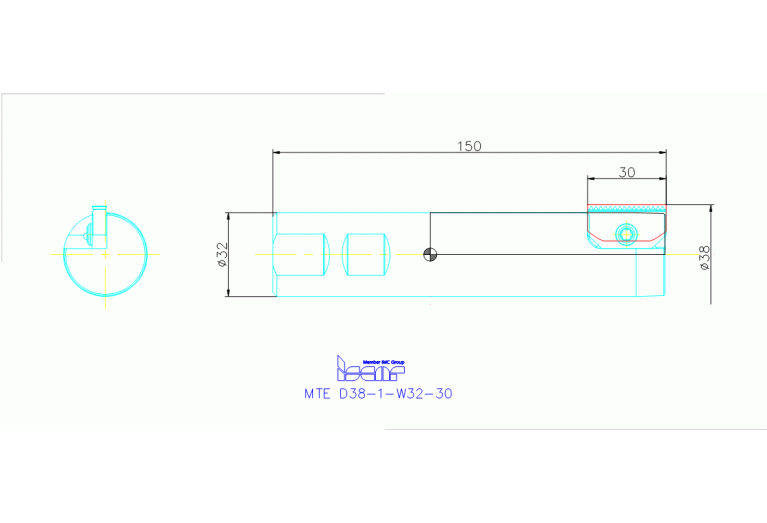

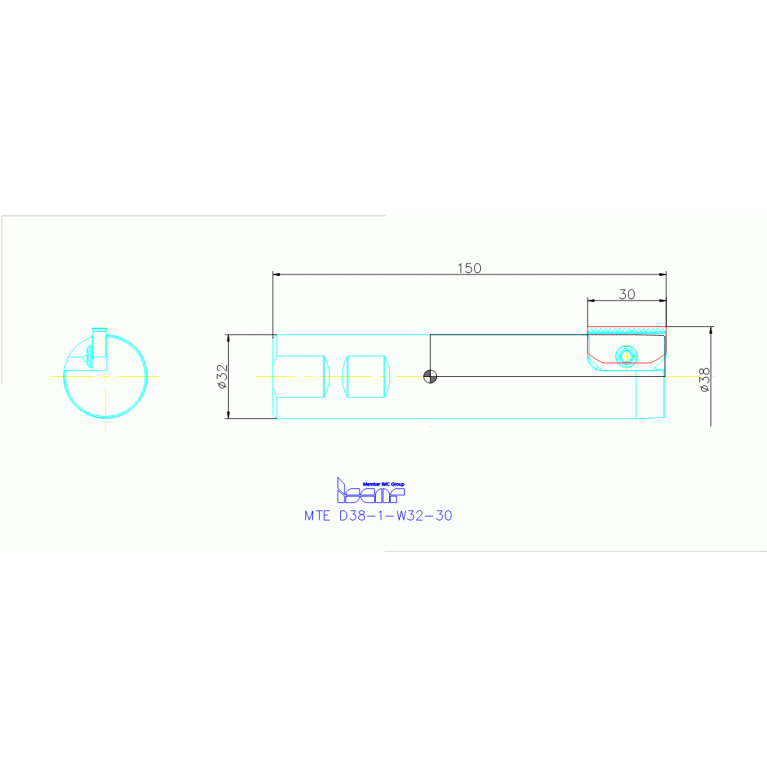

MTE D38-1-W32-30

OAL Overall length

150 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.9 kg

ZEFP Peripheral effective cutting edge count
