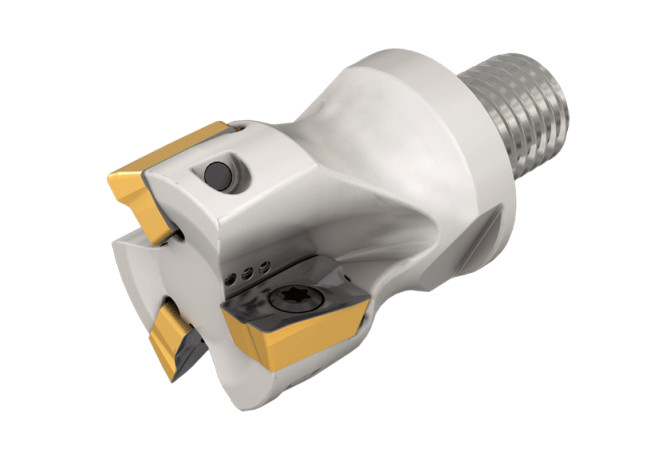

HM90 E90AD D32-3-M16-JHP

Артикул: 3365378

В наличии

В корзину

Описание

Характеристики

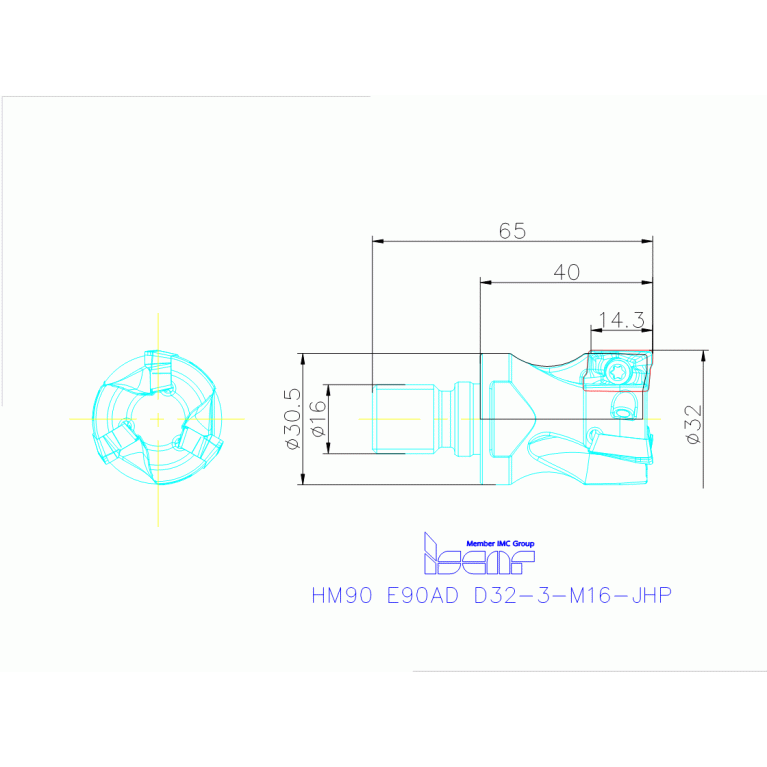

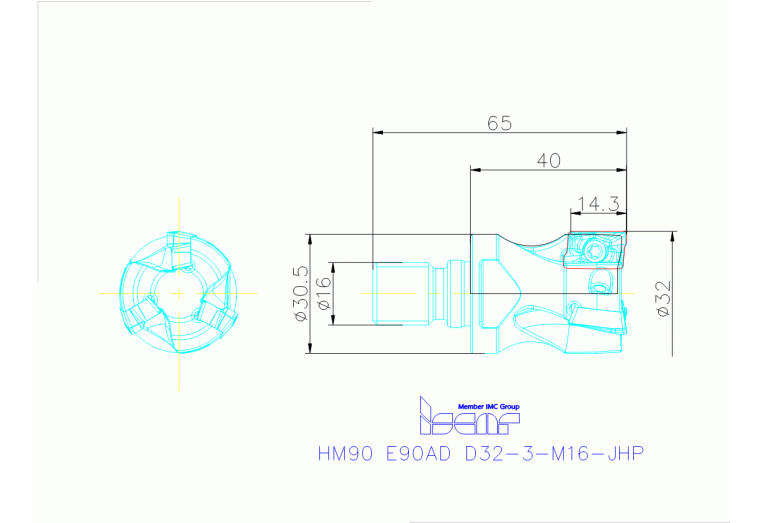

APMX Depth of cut maximum

14.3 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAI01500295

FamilyProducts

90° JHP Endmills With a FLEXFIT Threaded Adaptation Carrying HELI2000 and HELIMILL Inserts

ID Technical product number

3365378

Interface codes

J6 / J61

ISO

SAI02C0150$$$$

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01 MIID Master insert identification

ADCT 1505R8T-FF

LOC-01 ISO

IS$$1130240221216590

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-1130240221216590

LOC-02 BI Block index

LOC-02 MIID Master insert identification

ADCT 1505R8T-FF

LOC-02 ISO

IS$$1139853956892540

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-1139853956892540

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0150

LOC-03 ISO

SAI02C0150$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01500295

LPR Protruding length

40 mm

MIID Master insert identification

ADCT 1505R8T-FF

Name Identifying order number

HM90 E90AD D32-3-M16-JHP

OAL Overall length

65 mm

RMPX Ramping angle maximum

5.3 Degree

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

Номер таблицы (BI) / Block index (BI)
