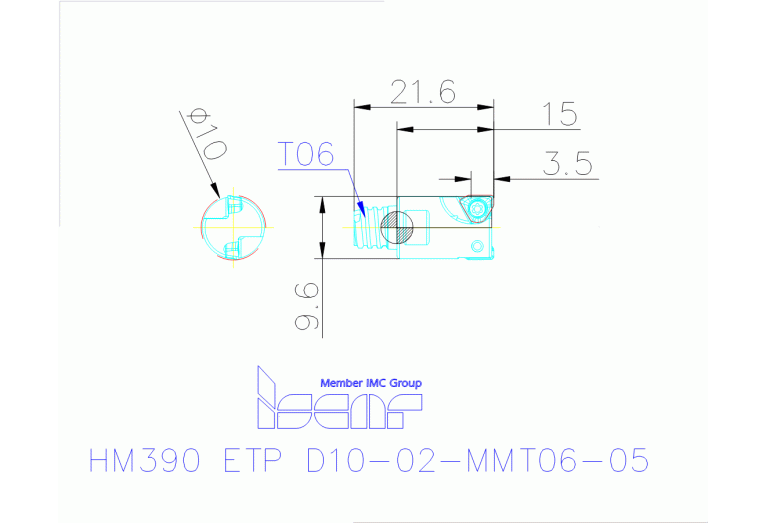

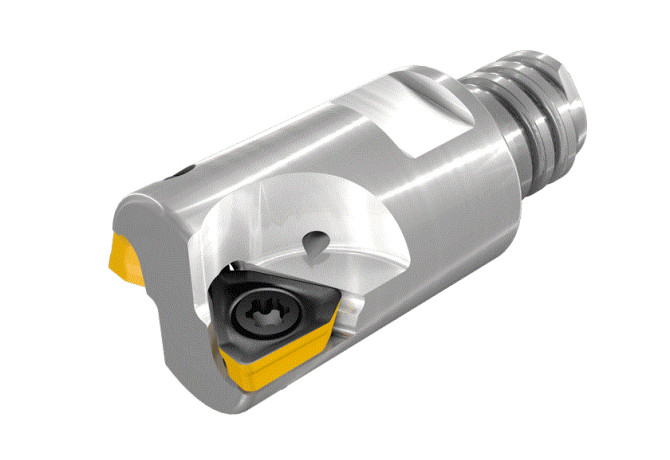

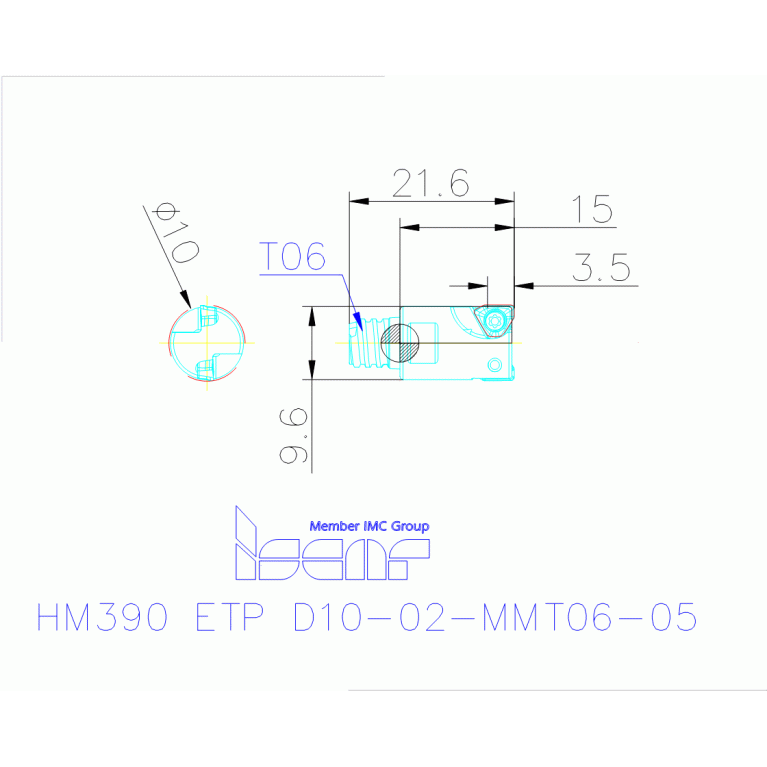

HM390 ETP D10-02-MMT06-05

Артикул: 3345996

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

3.5 mm

CCONMS Connection count machine side

COMPC Company code

IS - Iscar

DC Cutting diameter

10 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAI01500185

FamilyProducts

90° Endmills with a MULTI-MASTER Threaded Adaptation Carrying HM390 TPKT 0502... Triangular Inserts

ID Technical product number

3345996

Interface codes

J6 / J61

ISO

SAI01C0150$$$$

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01 MIID Master insert identification

HM390 TPKT 0502PDR

LOC-01 ISO

IS$$156917247975092

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-156917247975092

LOC-02 BI Block index

LOC-02 MIID Master insert identification

HM390 TPKT 0502PDR

LOC-02 ISO

IS$$156917247975092

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-156917247975092

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0150

LOC-03 ISO

SAI01C0150$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01500185

LPR Protruding length

15 mm

MIID Master insert identification

HM390 TPKT 0502PDR

Name Identifying order number

HM390 ETP D10-02-MMT06-05

OAL Overall length

21.6 mm

RMPX Ramping angle maximum

2 Degree

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFP Peripheral effective cutting edge count

Номер таблицы (BI) / Block index (BI)
