Главная Каталог продукции Toolunited 12 307-00 - End mill for indexable inserts unspecified H690 EWN D25-5-W25-R04

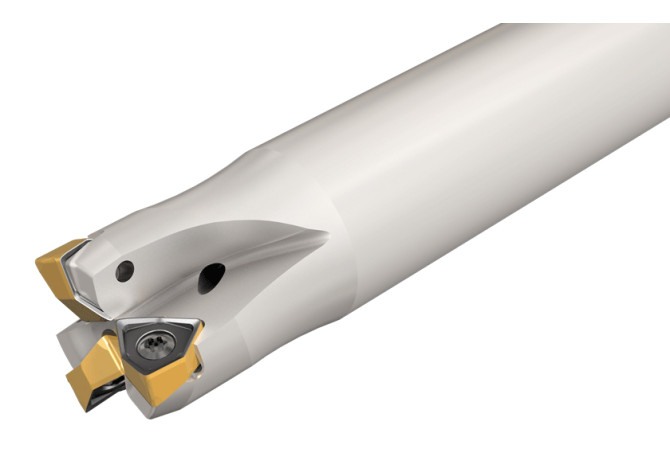

H690 EWN D25-5-W25-R04

Артикул: 3341104

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

25 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02501015

FamilyProducts

90° Endmills Carrying H690 WNMU 0403 Double-Sided Trigonal Inserts with 6 Helical Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3341104

Interface codes

J6 / J61

ISO

ZYL10G2500h$06

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

90 Degree

LH Head length

30 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

H690 WNMU 0404-PNTR

LOC-01 ISO

IS$$410625701638334

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-410625701638334

LOC-02 BI Block index

LOC-02 MIID Master insert identification

H690 WNMU 0404-PNTR

LOC-02 ISO

IS$$410625701638334

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-410625701638334

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02501015

MIID Master insert identification

H690 WNMU 0404-PNTR

Name Identifying order number

H690 EWN D25-5-W25-R04

OAL Overall length

95 mm

RMPX Ramping angle maximum

1.1 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.22 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

Номер таблицы (BI) / Block index (BI)
