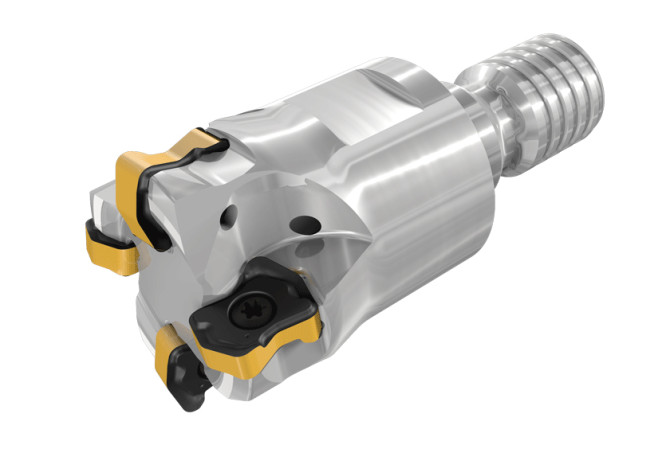

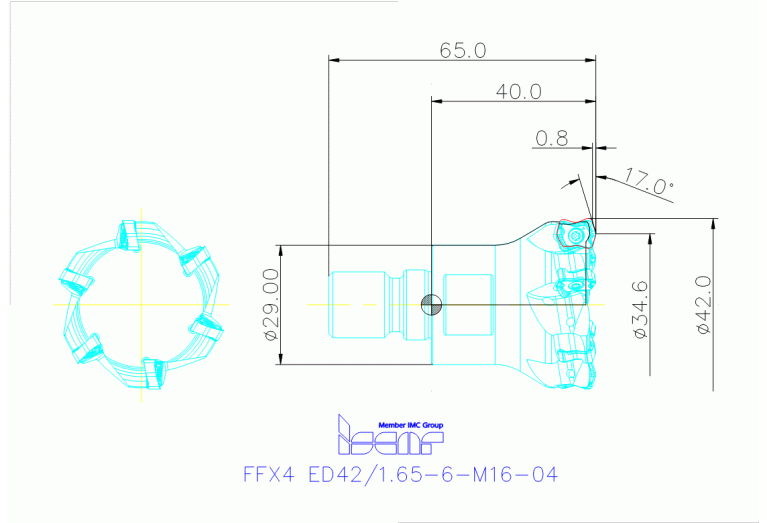

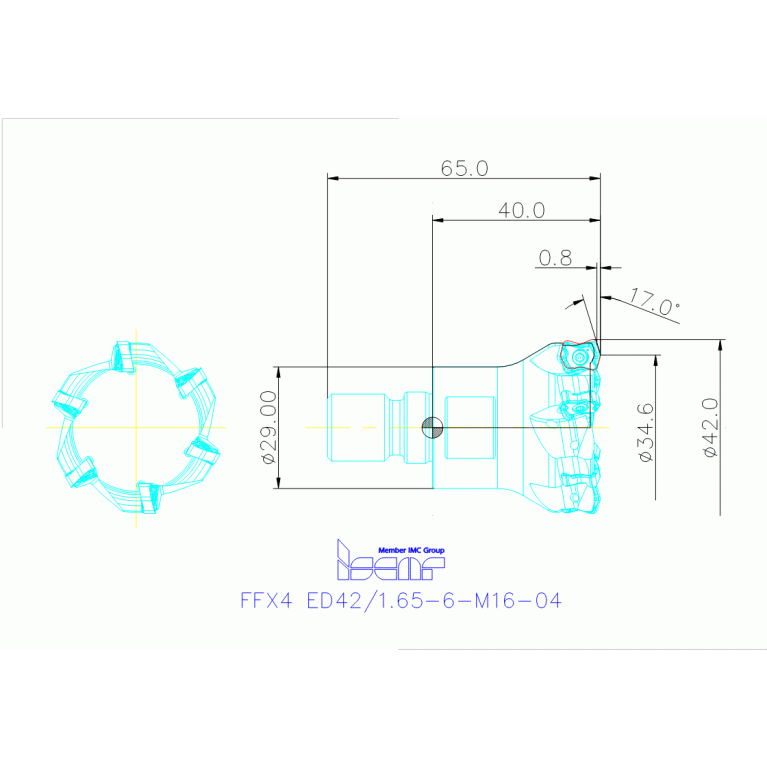

FFX4 ED42/1.65-6-M16-04

Артикул: 3369972

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.8 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

34.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

Endmills with FLEXFIT Adaptation Carrying Small "Bone Shaped" Inserts with 4 Cutting Edges for Fast Feed Milling

HAND Cutting direction

R - Right

ID Technical product number

3369972

Interface codes

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

17 Degree

LOC-01 BI Block index

LOC-01 MIID Master insert identification

FFX4 XNMU 040310T

LOC-01 ISO

IS$$379445234309740

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-379445234309740

LOC-02 BI Block index

LOC-02 MIID Master insert identification

FFX4 XNMU 040310T

LOC-02 ISO

IS$$391803508504776

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-391803508504776

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

40 mm

MIID Master insert identification

FFX4 XNMU 040310T

Name Identifying order number

FFX4 ED42/1.65-6-M16-04

OAL Overall length

65 mm

RMPX Ramping angle maximum

0.8 Degree

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.3 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
