Главная Каталог продукции Toolunited 12 307-00 - End mill for indexable inserts unspecified FFX4 ED12-1-030-C12-04

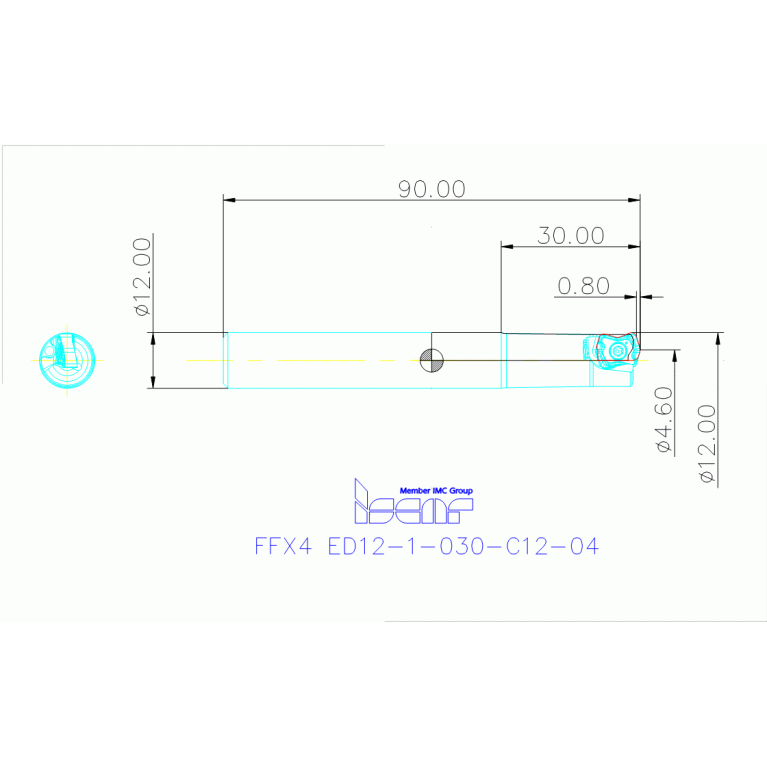

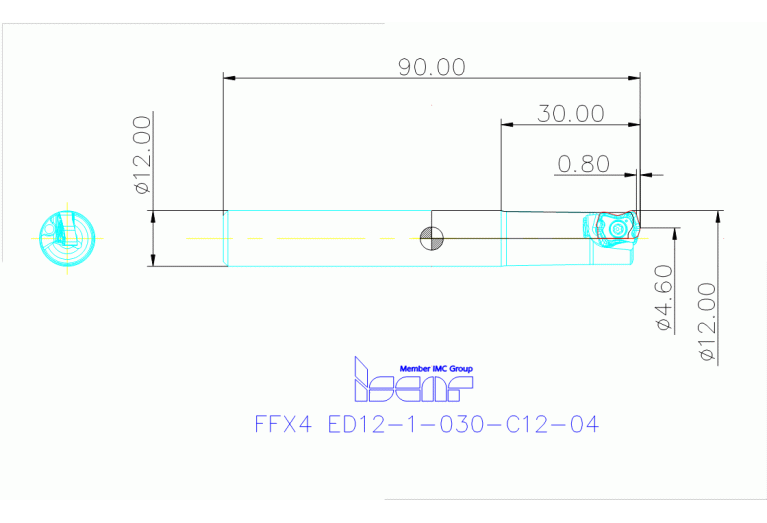

FFX4 ED12-1-030-C12-04

Артикул: 3336668

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.8 mm

BI Block index

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

4.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01200115

FamilyProducts

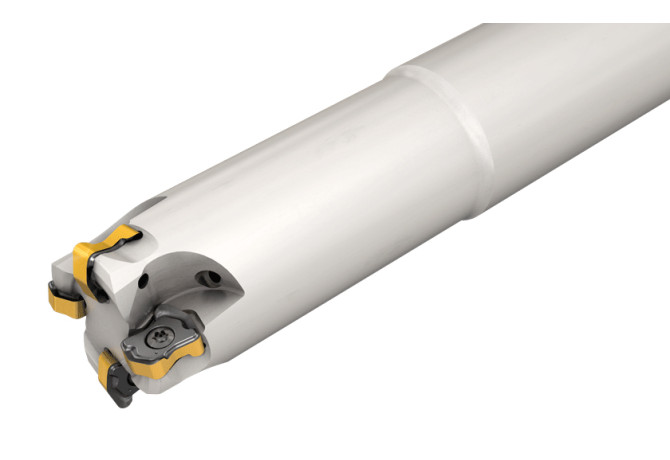

Endmills Carrying Small Double-Sided "Bone Shaped" Inserts with 4 Cutting Edges for Fast Feed Milling

ID Technical product number

3336668

Interface codes

J6 / J61

ISO

ZYL01G1200h$06

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

17 Degree

LF Functional length

90 mm

LH Head length

30 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

FFX4 XNMU 040310T

LOC-01 ISO

IS$$379445234309740

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-379445234309740

LOC-02 BI Block index

LOC-02 MIID Master insert identification

FFX4 XNMU 040310T

LOC-02 ISO

IS$$391803508504776

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-391803508504776

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200115

MIID Master insert identification

FFX4 XNMU 040310T

Name Identifying order number

FFX4 ED12-1-030-C12-04

OAL Overall length

90 mm

RMPX Ramping angle maximum

3.6 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.07 kg

ZEFP Peripheral effective cutting edge count
