Главная Каталог продукции Toolunited 12 307-00 - End mill for indexable inserts unspecified FFT3 EFMD25/.98-6MMT15-03

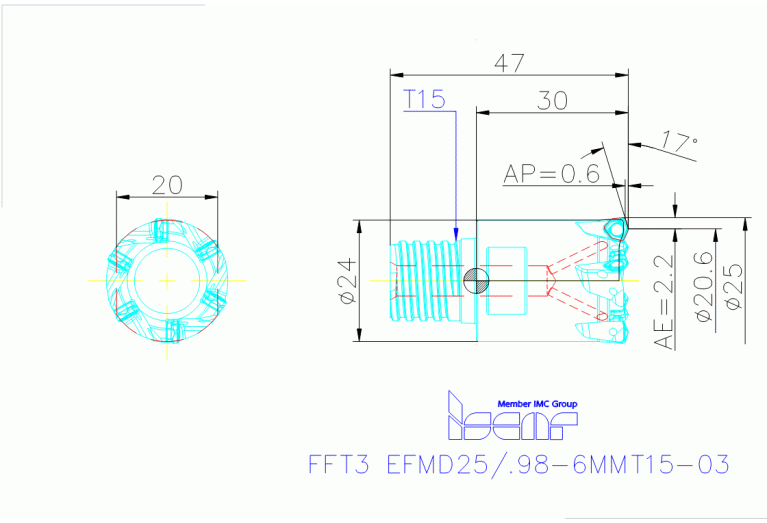

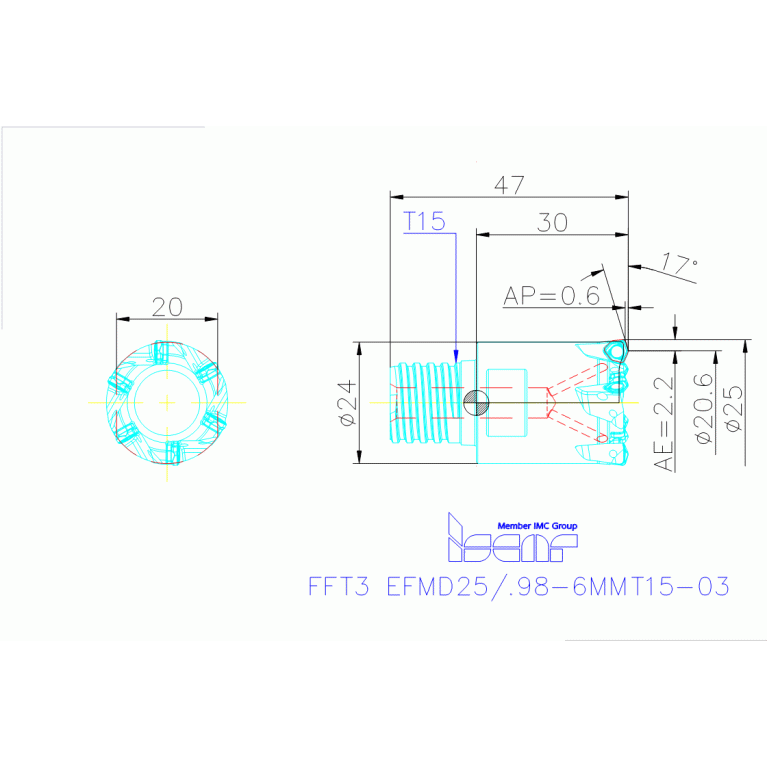

FFT3 EFMD25/.98-6MMT15-03

Артикул: 3384223

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.6 mm

BI Block index

CCONMS Connection count machine side

COMPC Company code

IS - Iscar

DC Cutting diameter

20.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

Endmills with a MULTI-MASTER Threaded Adaptation Carrying Single-Sided Small Trigon Inserts for Fast Feed Milling

HAND Cutting direction

R - Right

ID Technical product number

3384223

Interface codes

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

17 Degree

LOC-01 BI Block index

LOC-01 MIID Master insert identification

FFT3 WXMT 030206T

LOC-01 ISO

IS$$157233818511240

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-157233818511240

LOC-02 BI Block index

LOC-02 MIID Master insert identification

FFT3 WXMT 030206T

LOC-02 ISO

IS$$157233818511240

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-157233818511240

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

30 mm

MIID Master insert identification

FFT3 WXMT 030206T

Name Identifying order number

FFT3 EFMD25/.98-6MMT15-03

OAL Overall length

47 mm

RMPX Ramping angle maximum

1.5 Degree

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
