Главная Каталог продукции Toolunited 12 307-00 - End mill for indexable inserts unspecified FFT3 EFMD08/.31-2MMT05-02

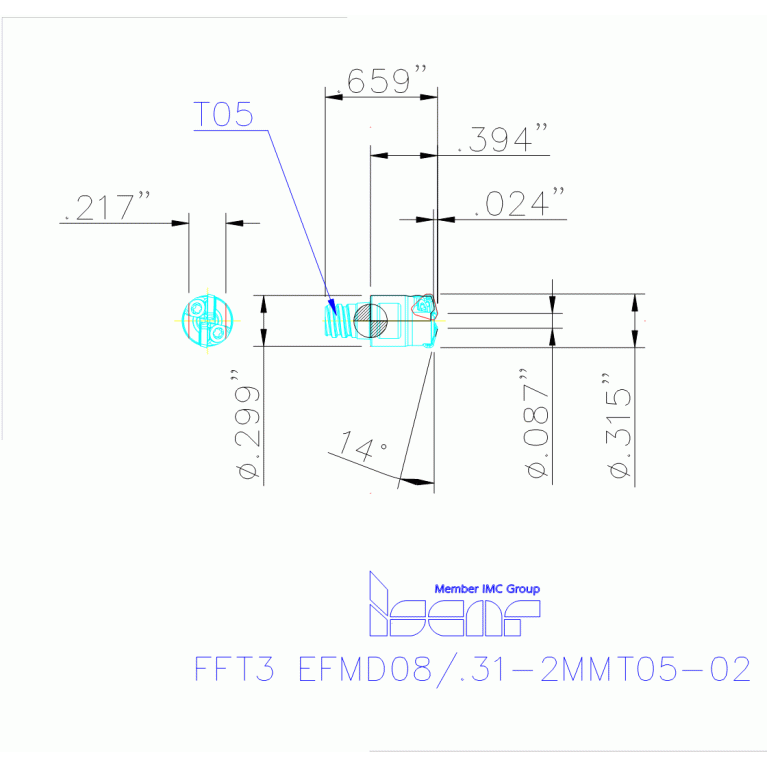

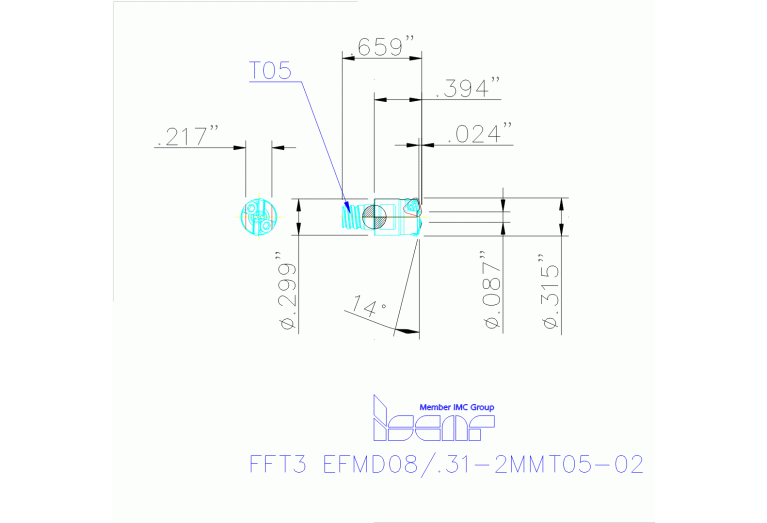

FFT3 EFMD08/.31-2MMT05-02

Артикул: 3346809

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.6 mm

BI Block index

CCONMS Connection count machine side

COMPC Company code

IS - Iscar

DC Cutting diameter

2.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

Small Diameter Endmills with a MULTI-MASTER Threaded Adaptation Carrying Triangular Inserts for Fast Feed Milling

HAND Cutting direction

R - Right

ID Technical product number

3346809

Interface codes

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

14 Degree

LOC-01 BI Block index

LOC-01 MIID Master insert identification

FFT3 TXMT 0201205T

LOC-01 ISO

IS$$66726585814882

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-66726585814882

LOC-02 BI Block index

LOC-02 MIID Master insert identification

FFT3 TXMT 0201205T

LOC-02 ISO

IS$$66726585814882

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-66726585814882

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

FFT3 TXMT 0201205T

Name Identifying order number

FFT3 EFMD08/.31-2MMT05-02

OAL Overall length

16.75 mm

RMPX Ramping angle maximum

10.8 Degree

Working process

No working processes available

WT Weight of item

0.01 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
