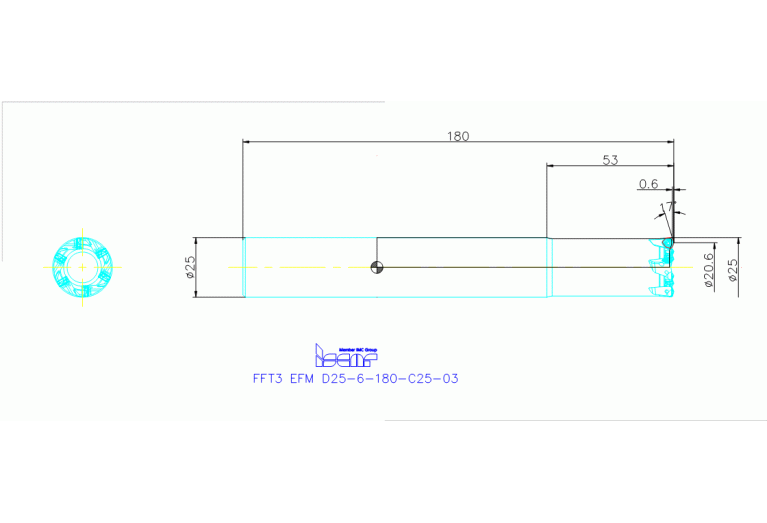

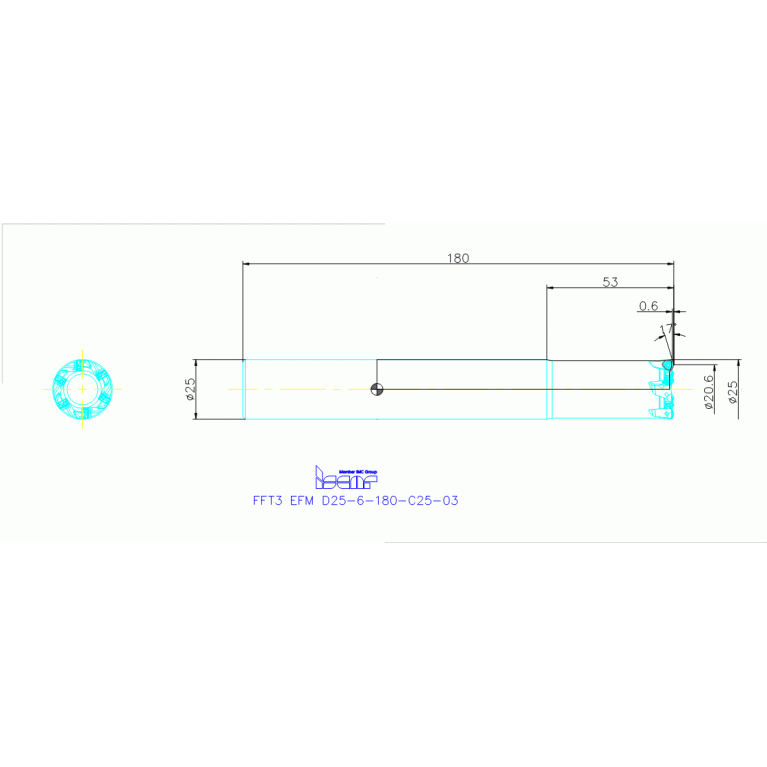

FFT3 EFM D25-6-180-C25-03

Артикул: 3384222

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.6 mm

BI Block index

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02500105

FamilyProducts

Endmills Carrying Single-Sided Small Trigon Inserts for Fast Feed Milling

ID Technical product number

3384222

Interface codes

J6 / J61

ISO

ZYL01G2500h$06

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

17 Degree

LF Functional length

180 mm

LH Head length

53 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

FFT3 WXMT 030206T

LOC-01 ISO

IS$$157233818511240

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-157233818511240

LOC-02 BI Block index

LOC-02 MIID Master insert identification

FFT3 WXMT 030206T

LOC-02 ISO

IS$$157233818511240

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-157233818511240

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500105

MIID Master insert identification

FFT3 WXMT 030206T

Name Identifying order number

FFT3 EFM D25-6-180-C25-03

OAL Overall length

180 mm

RMPX Ramping angle maximum

1.5 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.62 kg

ZEFP Peripheral effective cutting edge count
