Главная Каталог продукции Toolunited 12 307-00 - End mill for indexable inserts unspecified FFT3 EFM D16-4-140-C16-03

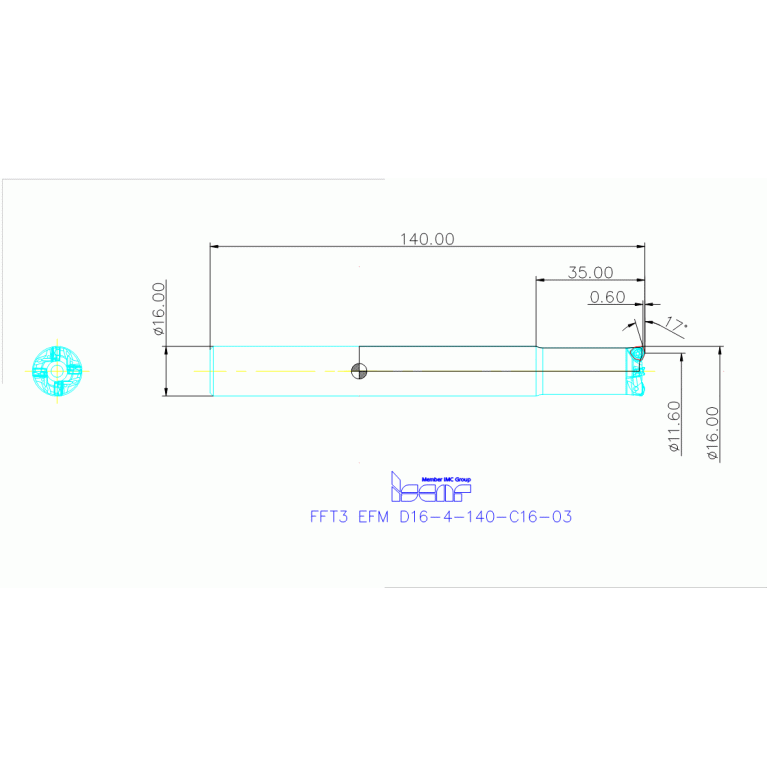

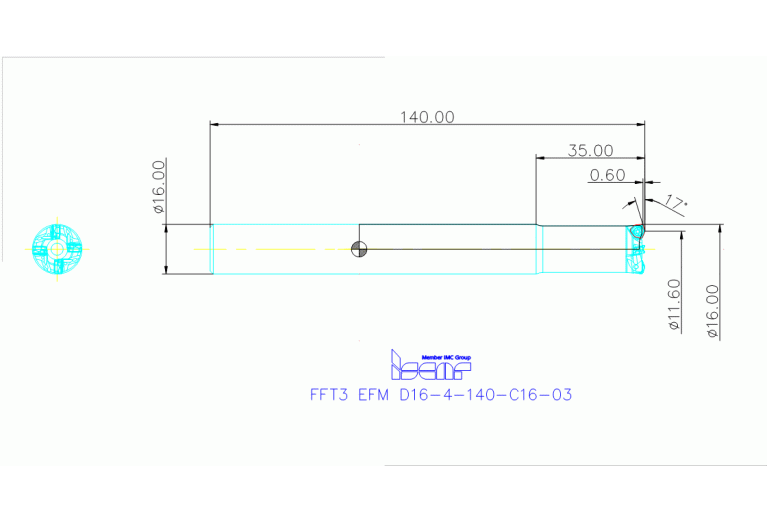

FFT3 EFM D16-4-140-C16-03

Артикул: 3343674

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

0.6 mm

BI Block index

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

11.6 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL01600105

FamilyProducts

Endmills Carrying Single-Sided Small Trigon Inserts for Fast Feed Milling

ID Technical product number

3343674

Interface codes

J6 / J61

ISO

ZYL01G1600h$06

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

17 Degree

LF Functional length

140 mm

LH Head length

35 mm

LOC-01 BI Block index

LOC-01 MIID Master insert identification

FFT3 WXMT 030206T

LOC-01 ISO

IS$$157233818511240

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-157233818511240

LOC-02 BI Block index

LOC-02 MIID Master insert identification

FFT3 WXMT 030206T

LOC-02 ISO

IS$$157233818511240

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-157233818511240

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G1600h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

92 mm

MIID Master insert identification

FFT3 WXMT 030206T

Name Identifying order number

FFT3 EFM D16-4-140-C16-03

OAL Overall length

140 mm

RMPX Ramping angle maximum

2.9 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.18 kg

ZEFP Peripheral effective cutting edge count
