Главная Каталог продукции Toolunited 12 307-00 - End mill for indexable inserts unspecified FFQ4 D040-05-M16-09

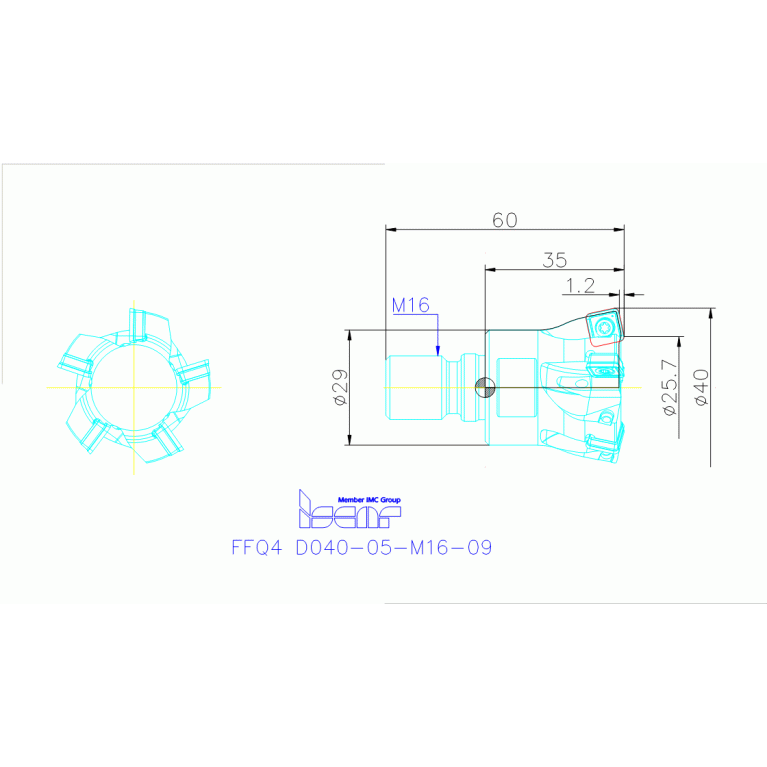

FFQ4 D040-05-M16-09

Артикул: 3323361

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1.2 mm

BI Block index

CCONMS Connection count machine side

COMPC Company code

IS - Iscar

DC Cutting diameter

25.7 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

FamilyProducts

Fast Feed Endmills with FLEXFIT Threaded Adaptation Carrying Single-Sided Inserts with 4 Cutting Edges

ID Technical product number

3323361

Interface codes

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

KAPR Tool cutting edge angle

12 Degree

LOC-01 BI Block index

LOC-01 MIID Master insert identification

FFQ4 SOMT 090412T

LOC-01 ISO

IS$$254041676270388

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-254041676270388

LOC-02 BI Block index

LOC-02 MIID Master insert identification

FFQ4 SOMT 090412T

LOC-02 ISO

IS$$254041676270388

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-254041676270388

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

MIID Master insert identification

FFQ4 SOMT 090412T

Name Identifying order number

FFQ4 D040-05-M16-09

OAL Overall length

60 mm

RMPX Ramping angle maximum

2 Degree

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.18 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
