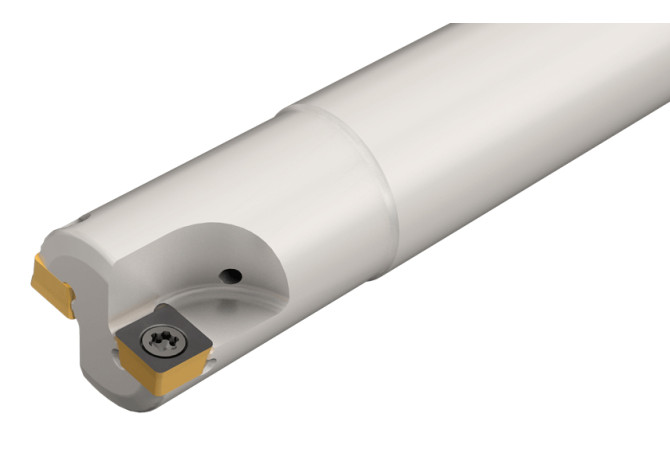

E90SO D12-2-C12-04-C
E90SO D12-2-C12-04-C
Артикул:
3340321
В наличии
Характеристики
APMX Depth of cut maximum
2 mm
BI Block index
1
CCONMS Connection count machine side
0
COMPC Company code
IS - Iscar
DC Cutting diameter
8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
FamilyProducts
Endmills Carrying Square Inserts for Shouldering and Fast Feed Milling Applications
HAND Cutting direction
R - Right
ID Technical product number
3340321
Interface codes
/
ISYC Subclass
307-00 - End mill for indexable inserts unspecified
KAPR Tool cutting edge angle
15 Degree
LF Functional length
70 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
SOMT 040208 PNR-FF
LOC-01 ISO
IS$$222137491222296
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IS-222137491222296
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
SOMT 040208 PNR-FF
LOC-02 ISO
IS$$244678686046704
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-244678686046704
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
25 mm
LU Usable length
18 mm
MIID Master insert identification
SOMT 040208 PNR-FF
Name Identifying order number

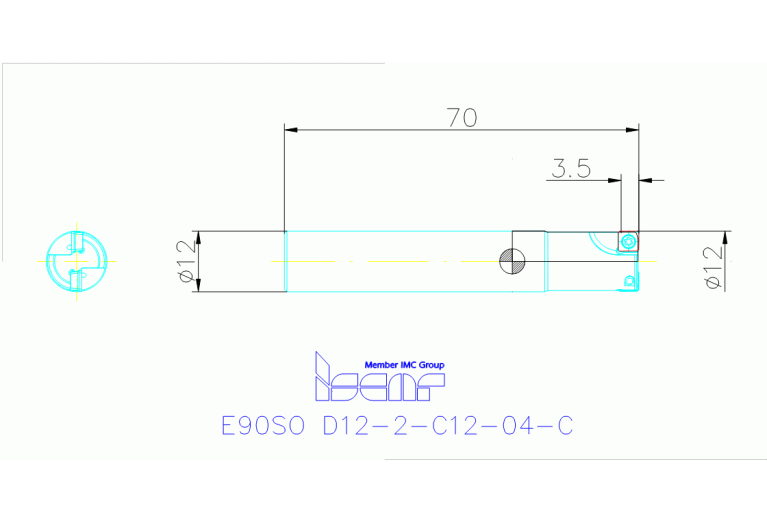

E90SO D12-2-C12-04-C
OAL Overall length
70 mm
RMPX Ramping angle maximum
3 Degree
Working process
No working processes available
WT Weight of item
0.05 kg
ZEFP Peripheral effective cutting edge count
2
