Главная Каталог продукции Toolunited 12 307-00 - End mill for indexable inserts unspecified 1TG1V025035X7R00

1TG1V025035X7R00

Артикул: 6247696

В наличии

В корзину

Описание

Характеристики

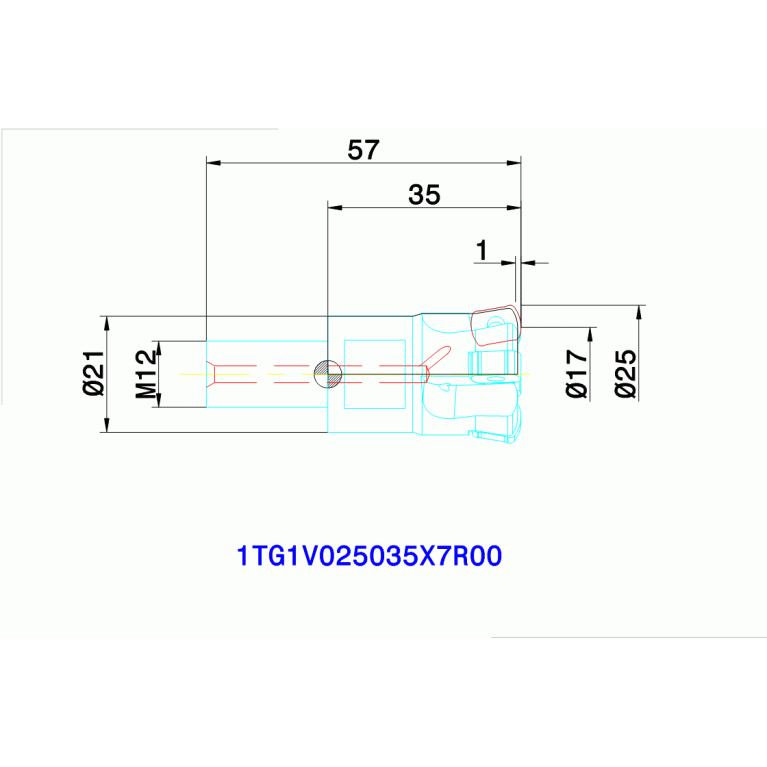

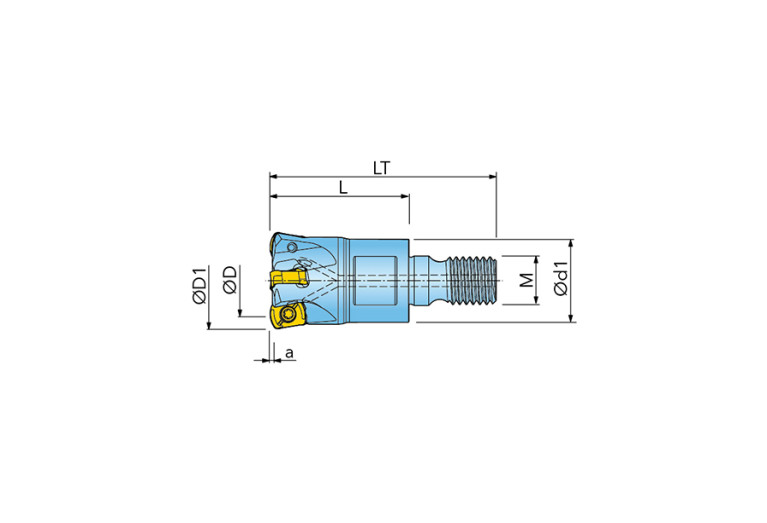

APMX Depth of cut maximum

1 mm

BD Body diameter

25 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

2 mm

DC Cutting diameter

17 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

SAD01200115

DN Neck diameter

21 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

High Feed Cutter 1TG1V...X

HAND Cutting direction

R - Right

ID Technical product number

6247696

Interface codes

J6 /

ISYC Subclass

307-00 - End mill for indexable inserts unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAD Screw mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0120

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAD01200115

LPR Protruding length

35 mm

Name Identifying order number

1TG1V025035X7R00

OAL Overall length

57 mm

RMPX Ramping angle maximum

2.5 Degree

THSZMS Connection thread nominal size machine side

M12

Working process

FPL - Face milling

WT Weight of item

0.16 kg

ZEFP Peripheral effective cutting edge count
