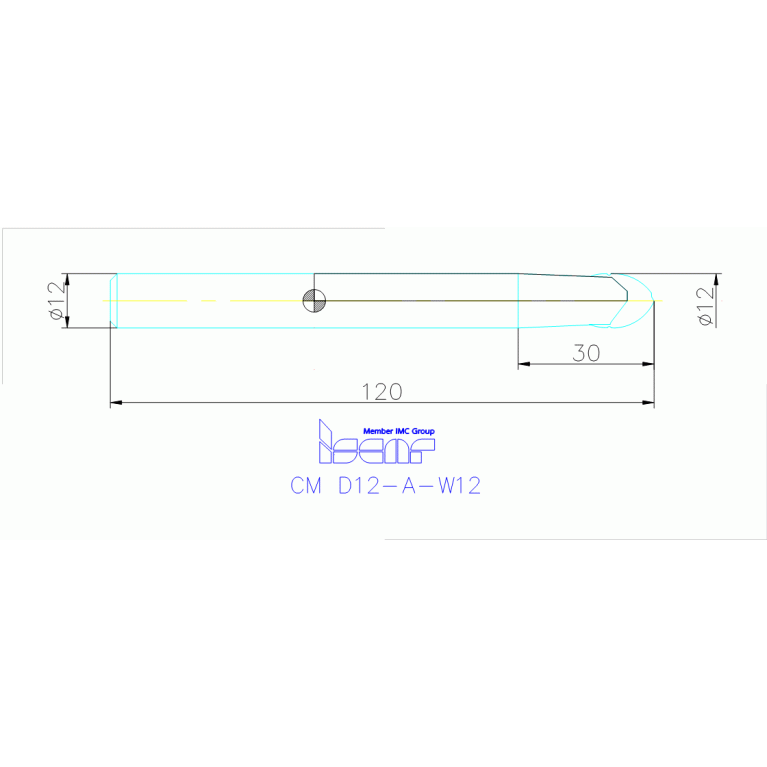

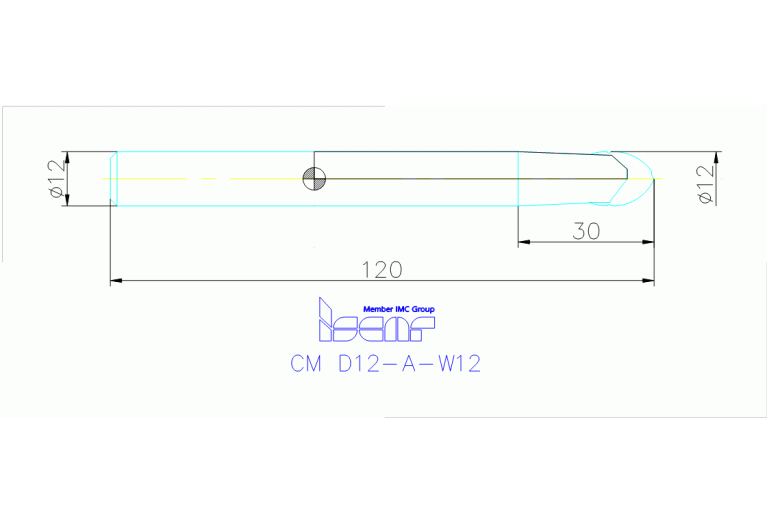

CM D12-A-W12
CM D12-A-W12
Артикул:
3110493
В наличии
Характеристики
APMX Depth of cut maximum
7.4 mm
CCONMS Connection count machine side
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
12 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
FamilyProducts
Ball Nose Endmills D=8-20 mm
HAND Cutting direction
R - Right
ID Technical product number
3110493
Interface codes
/
ISYC Subclass
307-12 - Angular ball-nosed end mill
LF Functional length
120 mm
LH Head length
30 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
CRF D120-QF
LOC-02 ISO
IS$$9675166703049
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-9675166703049
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MILTTY Mill tool type ISO
L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°
Name Identifying order number
CM D12-A-W12
OAL Overall length
120 mm
Working process
No working processes available
WT Weight of item
0.1 kg
ZEFF Face effective cutting edge count
2
