Главная Каталог продукции Toolunited 12 307-12 - Angular ball-nosed end mill BCM D20-MMT12-CC

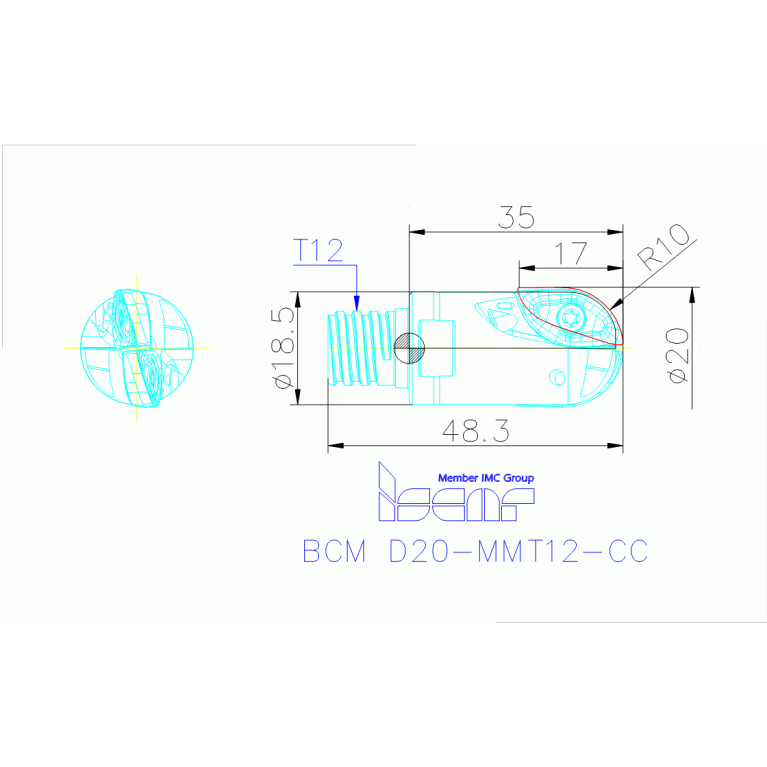

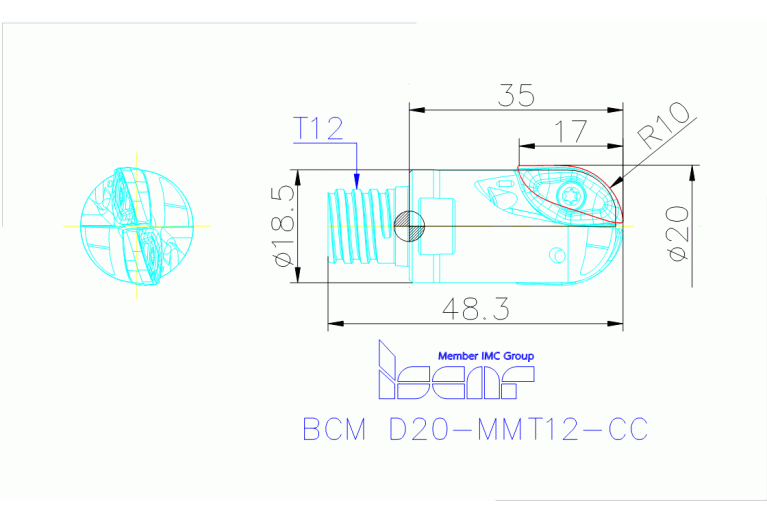

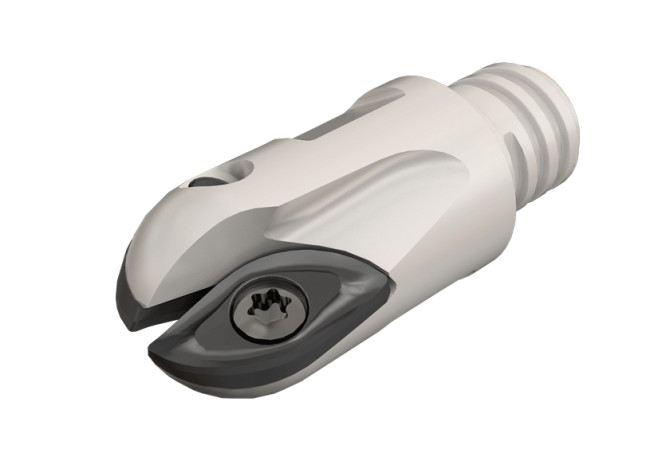

BCM D20-MMT12-CC

Артикул: 3381961

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

17 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

SAI01200185

FamilyProducts

Ball Nose Endmills with MULTI-MASTER Threaded Adaptation Carrying Tangent Straight Edge Inserts for Finish Profiling

HAND Cutting direction

R - Right

ID Technical product number

3381961

Interface codes

J6 / J61

ISO

SAI01C0120$$$$

ISYC Subclass

307-12 - Angular ball-nosed end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0120

LOC-03 ISO

SAI01C0120$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01200185

MILTTY Mill tool type ISO

L - Face and side end mill with ball nose (more then one indexable insert pro cutting edge) 90°

Name Identifying order number

BCM D20-MMT12-CC

OAL Overall length

48.8 mm

Working process

No working processes available

WT Weight of item

0.1 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
