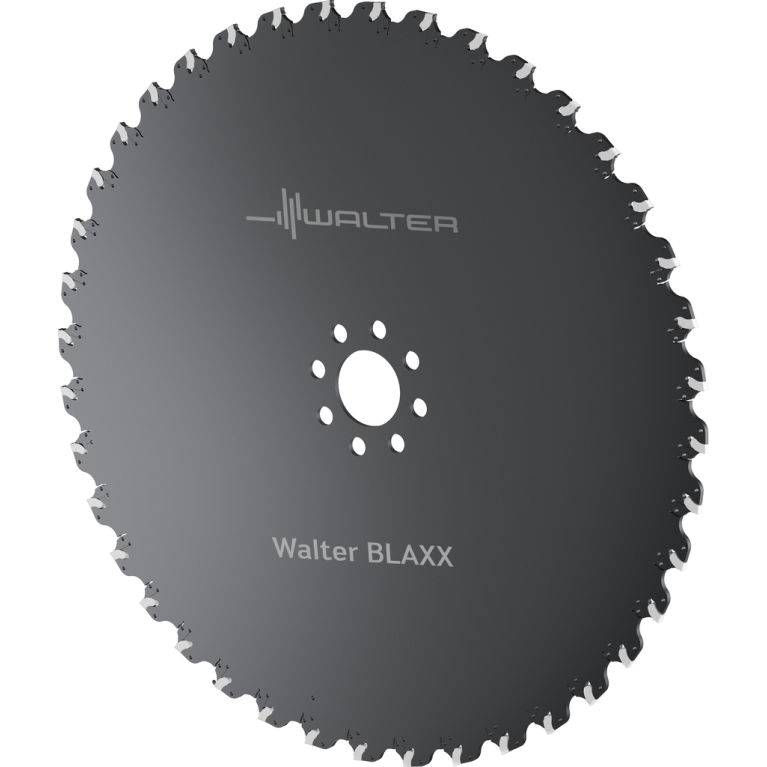

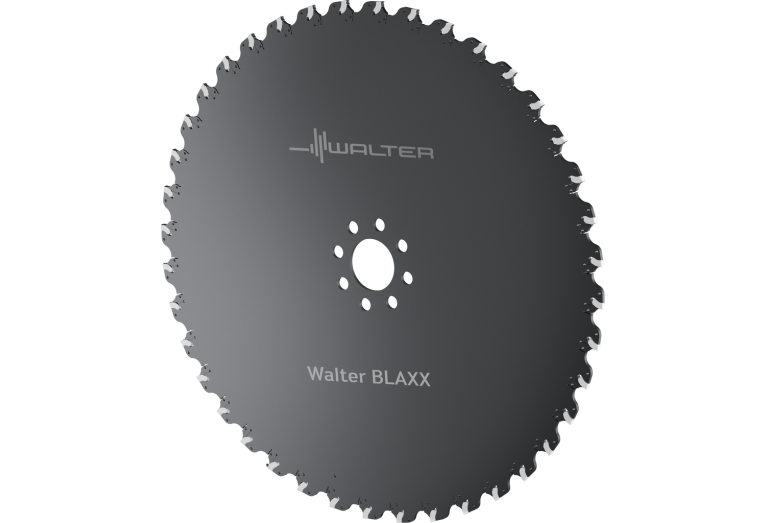

Главная Каталог продукции Toolunited 12 308-09 - Saw blade / slitting cutter F5055R.B50.500.Z40.5,0

F5055R.B50.500.Z40.5,0

F5055R.B50.500.Z40.5,0 F5055R.B50.500.Z40.5,0 F5055R.B50.500.Z40.5,0

F5055R.B50.500.Z40.5,0

Walter
Артикул: 8293004
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
0
CICT Cutting item count
40
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CWN Cutting width minimum
5 mm
CWX Cutting width maximum
5 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
500 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
FamilyProducts
Parting and slitting cutters F5055
HAND Cutting direction
N - Neutral
ID Technical product number
8293004
Interface codes
/
ISYC Subclass
308-09 - Saw blade / slitting cutter
KAPR Tool cutting edge angle
90 Degree
MILTTY Mill tool type ISO
D - Slot or separating cutter
Name Identifying order number
F5055R.B50.500.Z40.5,0
OAL Overall length
5 mm
RPMX Rotational speed maximum
800 1/min
Working process
FNU - Groove milling
WT Weight of item
8.39 kg
ZEFP Peripheral effective cutting edge count
40
