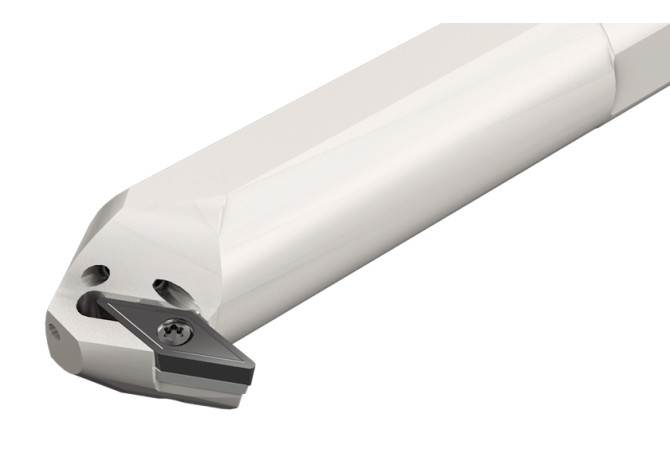

Главная Каталог продукции Toolunited 12 309-06 - Pull back boring bar A32T SVLBCR-16

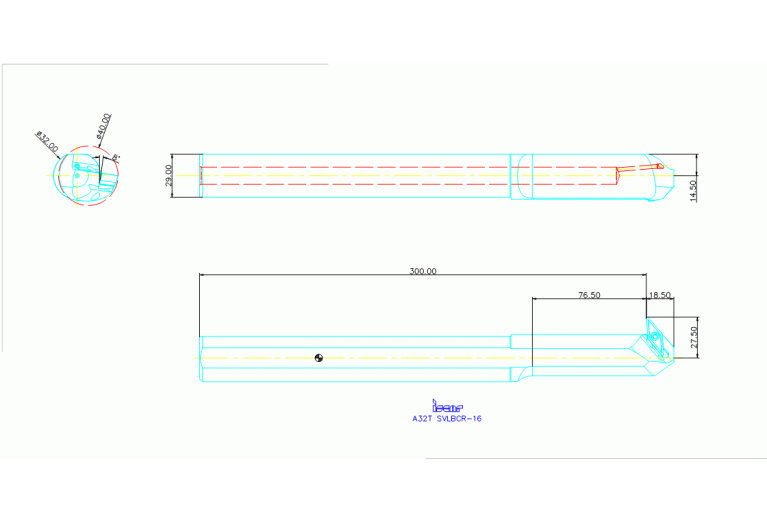

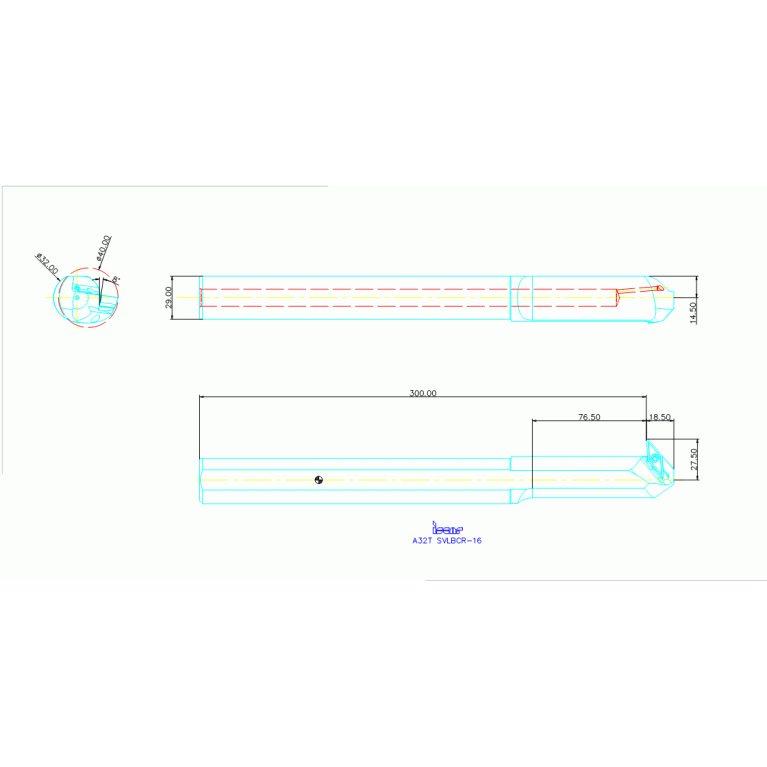

A32T SVLBCR-16

Артикул: 3603133

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL03202205

DMIN Minimum bore diameter

40 mm

EPSR Insert included angle

35 Degree

FamilyProducts

Screw Lock Back Boring Bars Carrying 35° Rhombic Inserts with 7° Clearance

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

ID Technical product number

3603133

Interface codes

J6 / J61

ISO

ZYL22G3200h$06

ISYC Subclass

309-06 - Pull back boring bar

KAPR Tool cutting edge angle

95 Degree

LF Functional length

300 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 H Shank height

29 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03202205

MIID Master insert identification

VCMT 160404-FPC

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

A32T SVLBCR-16

OAL Overall length

318.5 mm

WF Functional width

27.5 mm

Working process

No working processes available

WT Weight of item

1.56 kg
