Главная Каталог продукции Toolunited 12 309-06 - Pull back boring bar A20R SDZNR-07

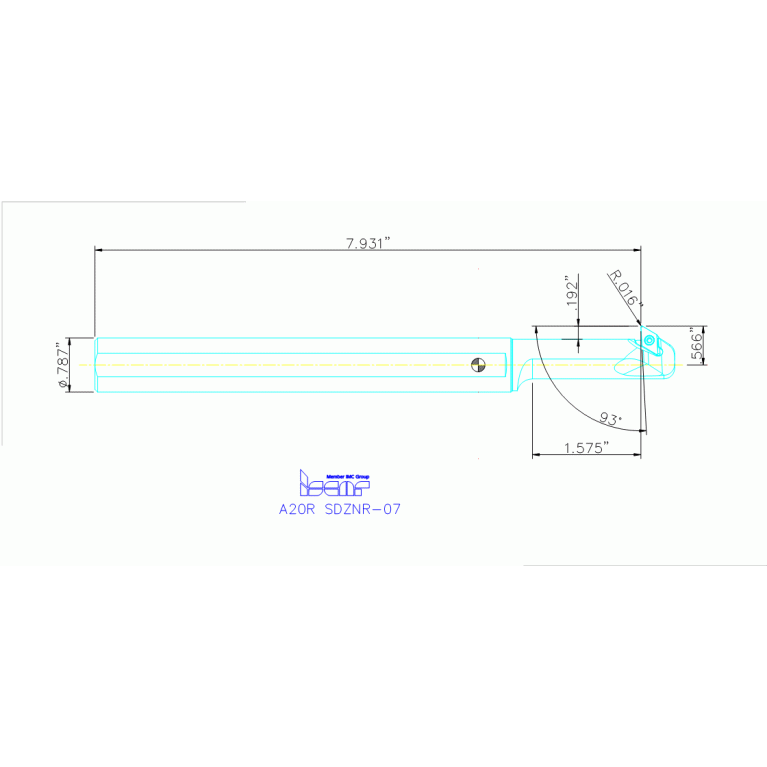

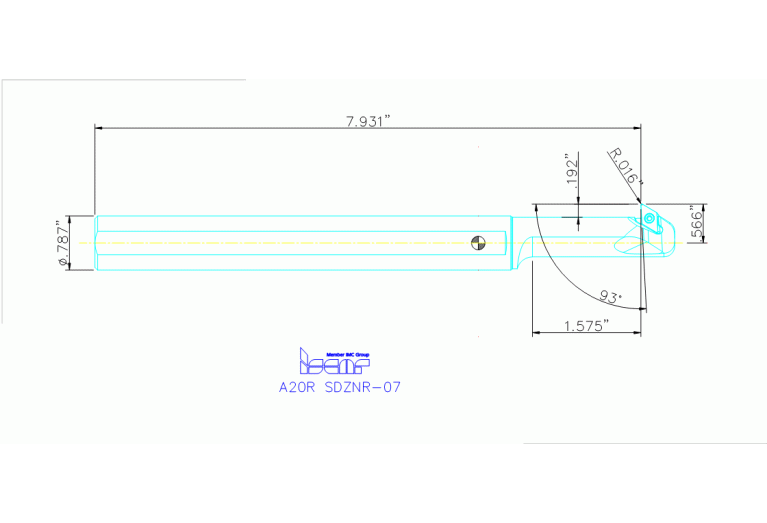

A20R SDZNR-07

Артикул: 6709251

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL02002215

DIN CSW1

IS-780400026748007

DMIN Minimum bore diameter

20 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Back Turning Boring Bars Carrying DNGP 0703.. Double-Sided 55° Rhombic Inserts for Small Diameters

HAND Cutting direction

R - Right

ID Technical product number

6709251

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22G2000h$06

ISO CSW1

IS$$780400026748007

ISYC Subclass

309-06 - Pull back boring bar

KAPR Tool cutting edge angle

93 Degree

LF Functional length

200 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 H Shank height

18 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL22G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002215

MIID Master insert identification

DNGP 070302R-F2M

Name Identifying order number

A20R SDZNR-07

OAL Overall length

212.5 mm

WF Functional width

14.5 mm

Working process

No working processes available

WT Weight of item

0.47 kg
