Главная Каталог продукции Toolunited 12 203-01 - Replaceable insert with chip flute QCP 074-2M IC908

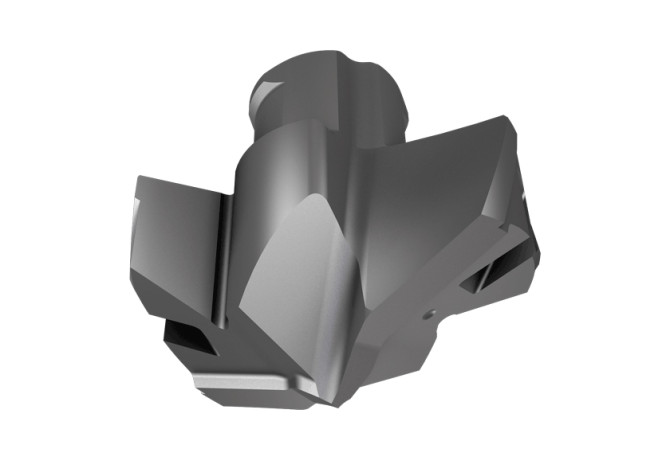

QCP 074-2M IC908

Артикул: 3397597

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

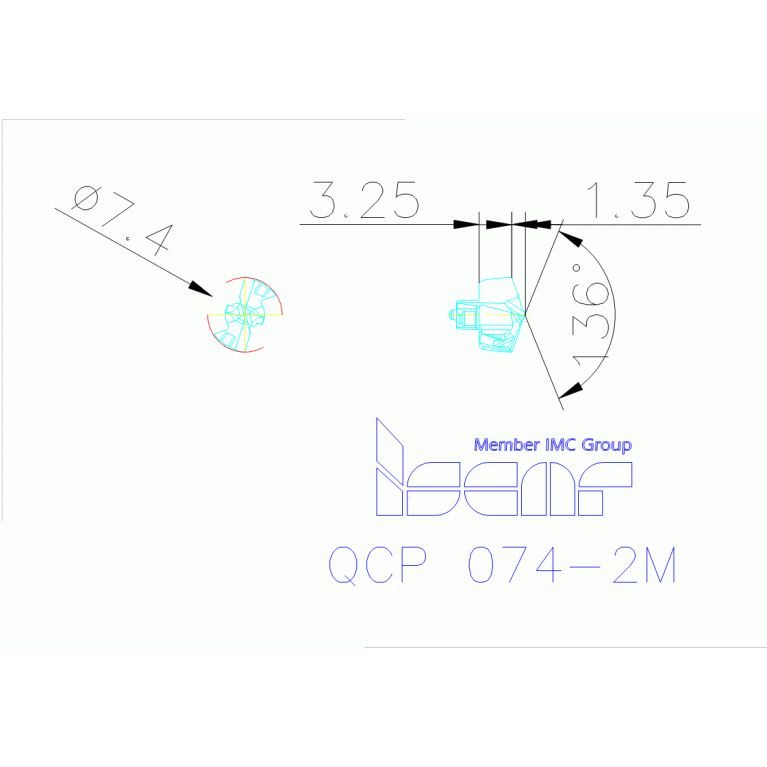

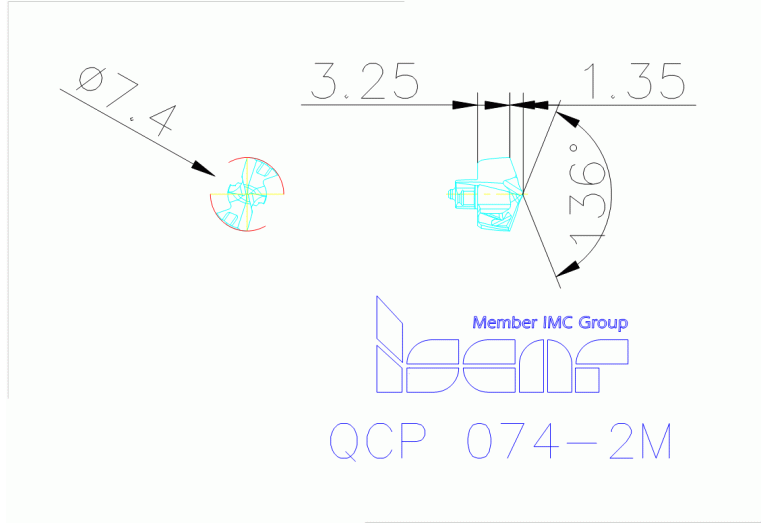

DC Cutting diameter

7.4 mm

Delivery state valid from

4/1/2022

DIN

IS-207575802394371

FamilyProducts

Exchangeable Self-Centering Drilling Head for DCN Drills, for Machining ISO P Materials with High Surface Finish Results

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

3397597

Interface codes

J6 / J61

ISO

IS$$207575802394371

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

3.17 mm

LOC-03 ISO

IS$$207575802394371

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-207575802394371

LPR Protruding length

7 mm

Name Identifying order number

QCP 074-2M IC908

PL Point length

1.43 mm

SIG Point angle 1st step

136 Degree

Working process

No working processes available
