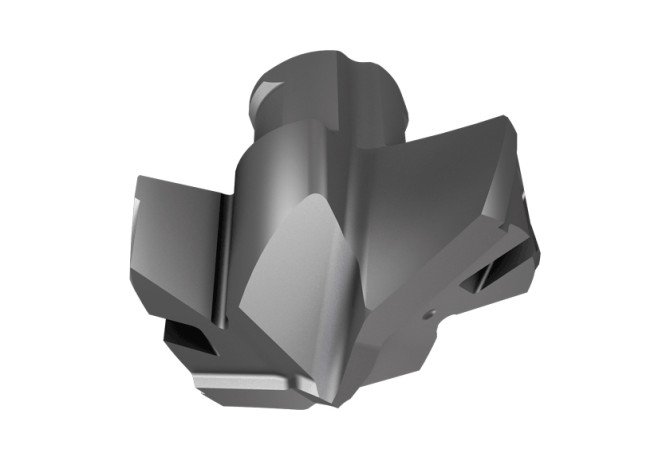

QCP 068-2M IC908

Артикул: 3384000

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

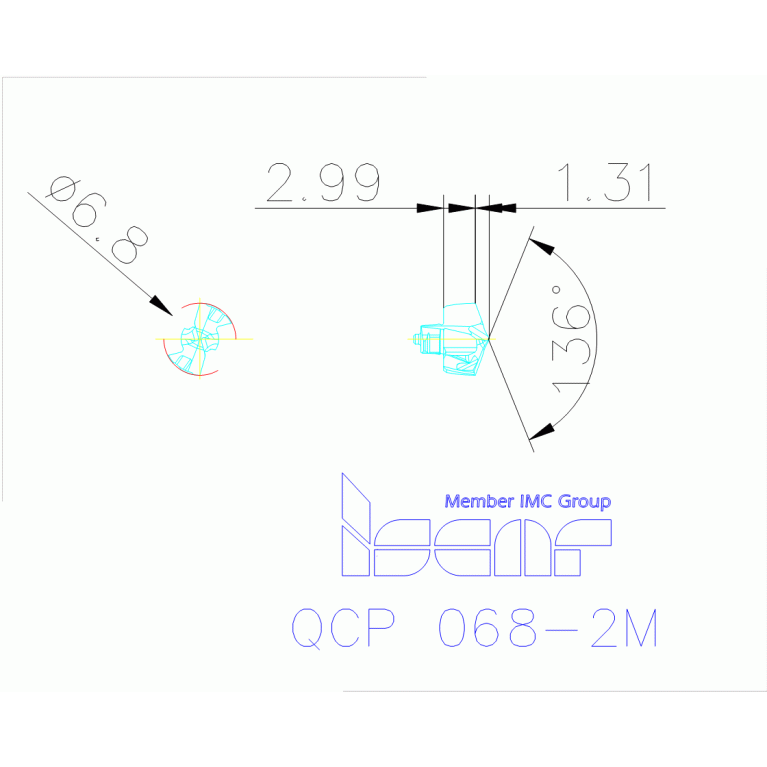

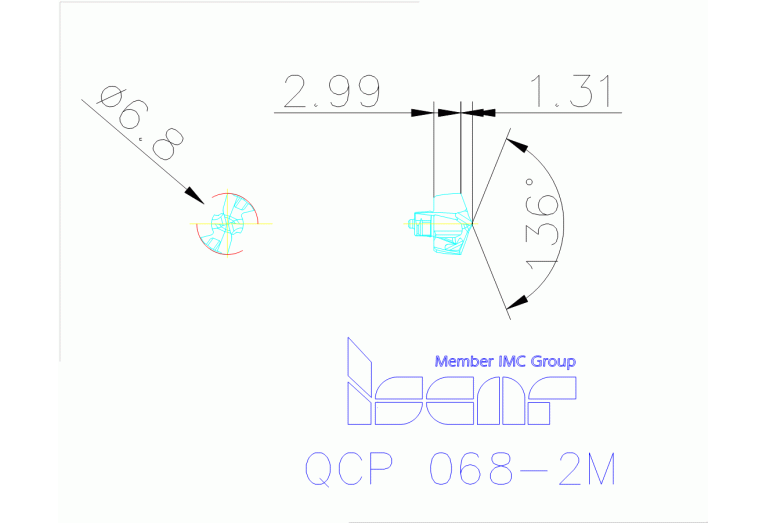

DC Cutting diameter

6.8 mm

Delivery state valid from

4/1/2022

DIN

IS-135586540199159

FamilyProducts

Exchangeable Self-Centering Drilling Head for DCN Drills, for Machining ISO P Materials with High Surface Finish Results

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

3384000

Interface codes

J6 / J61

ISO

IS$$135586540199159

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

2.83 mm

LOC-03 ISO

IS$$135586540199159

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-135586540199159

LPR Protruding length

4.3 mm

Name Identifying order number

QCP 068-2M IC908

PL Point length

1.47 mm

SIG Point angle 1st step

136 Degree

Working process

No working processes available
