ICP 043 IC908
ICP 043 IC908
Артикул:
3346600
В наличии
Характеристики
COATN Coating
TiAlN
COMPC Company code
IS - Iscar

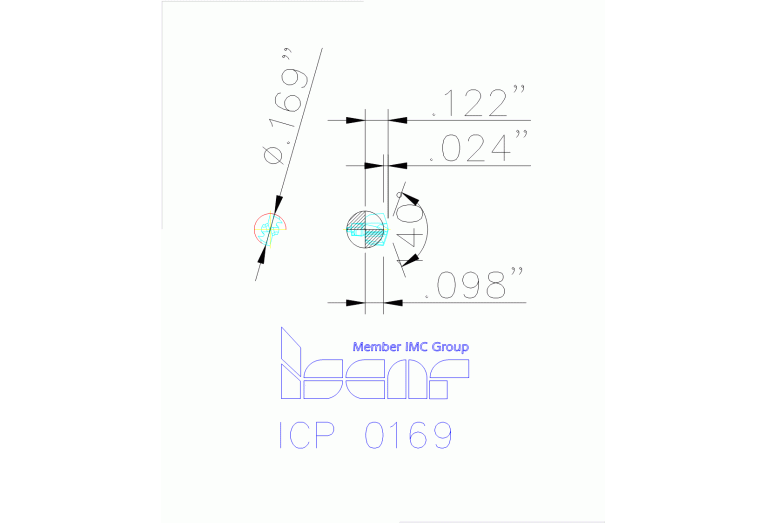

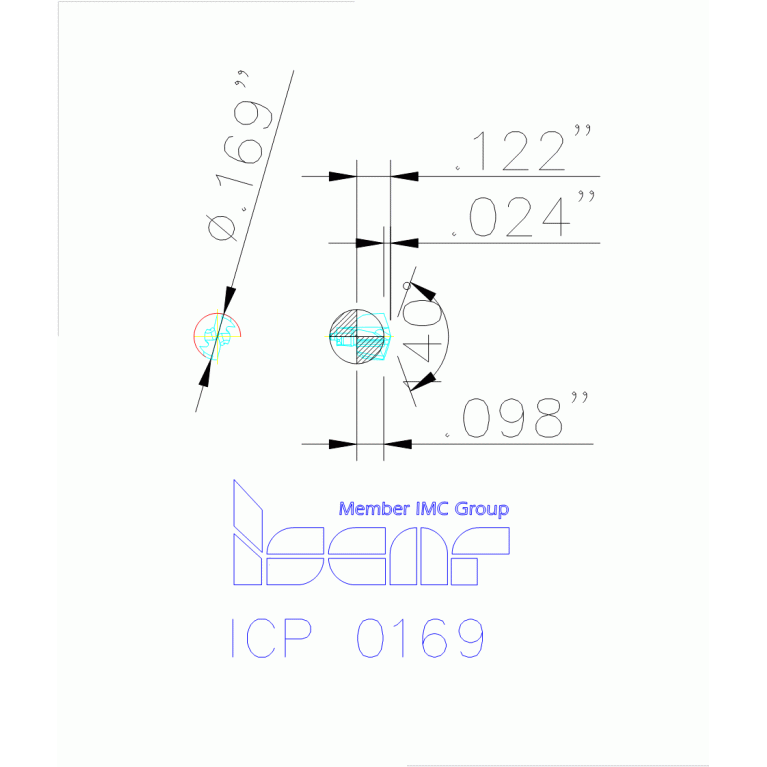

DC Cutting diameter
4.3 mm
Delivery state valid from
4/1/2022
DIN
IS-33689125680220
FamilyProducts

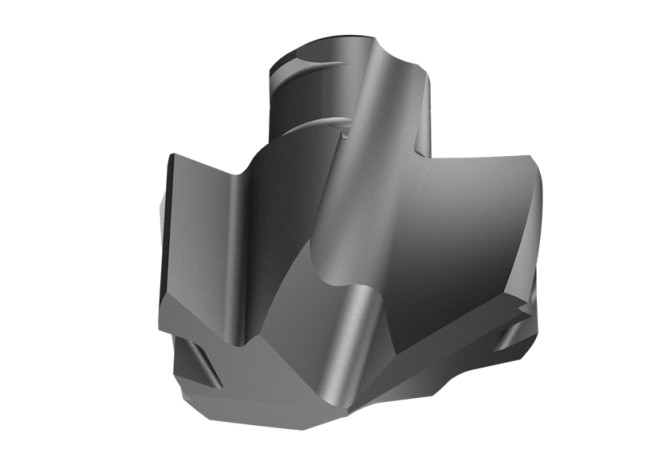

Exchangeable Drilling Heads for DCN Drills, for Machining ISO P Materials
GRDMFG Grade manufacturers designation
IC908
ID Technical product number
3346600
Interface codes
J6 / J61
ISO
IS$$33689125680220
ISYC Subclass
203-01 - Replaceable insert with chip flute
LF Functional length
2.48 mm
LOC-03 ISO
IS$$33689125680220
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IS-33689125680220
LPR Protruding length
3.1 mm
Name Identifying order number
ICP 043 IC908
PL Point length
0.62 mm
SIG Point angle 1st step
140 Degree
Working process
No working processes available
