ICN 2062 IC08

Артикул: 3366620

В наличии

В корзину

Описание

Характеристики

COMPC Company code

IS - Iscar

DC Cutting diameter

20.62 mm

Delivery state valid from

4/1/2022

FamilyProducts

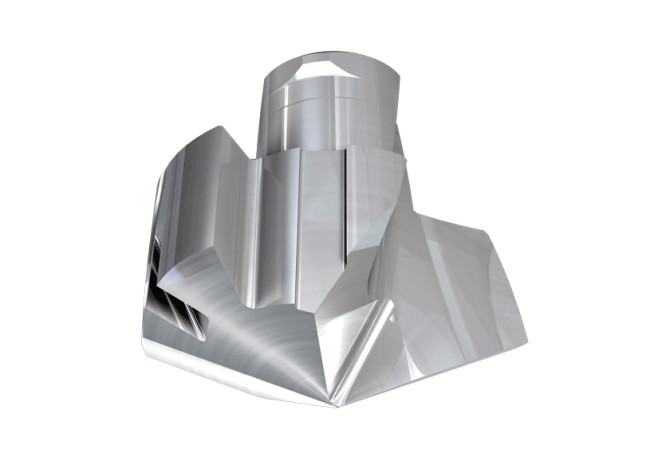

Exchangeable Drilling Heads for DCN Drills, for Machining ISO N Materials

GRDMFG Grade manufacturers designation

IC08

ID Technical product number

3366620

Interface codes

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

8.47 mm

Name Identifying order number

ICN 2062 IC08

PL Point length

3.13 mm

SIG Point angle 1st step

140 Degree

Working process

No working processes available
