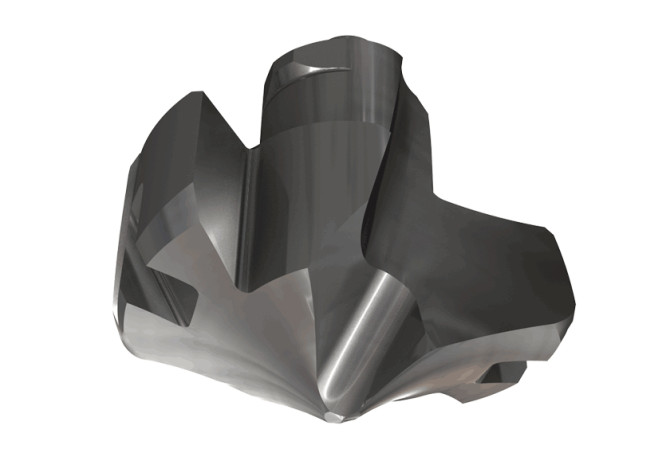

HCP 1605-IQ IC908

Артикул: 3392582

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DC Cutting diameter

16.05 mm

Delivery state valid from

4/1/2022

DIN

IS-258085970323236

FamilyProducts

Exchangeable Self-Centering Drilling Heads for DCN Drills, for Machining ISO P and ISO K Materials

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

3392582

Interface codes

J6 / J61

ISO

IS$$258085970323236

ISYC Subclass

203-01 - Replaceable insert with chip flute

LF Functional length

5.39 mm

LOC-03 ISO

IS$$258085970323236

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-258085970323236

LPR Protruding length

9.3 mm

Name Identifying order number

HCP 1605-IQ IC908

PL Point length

3.91 mm

SIG Point angle 1st step

137 Degree

Working process

No working processes available

WT Weight of item

0.01 kg
