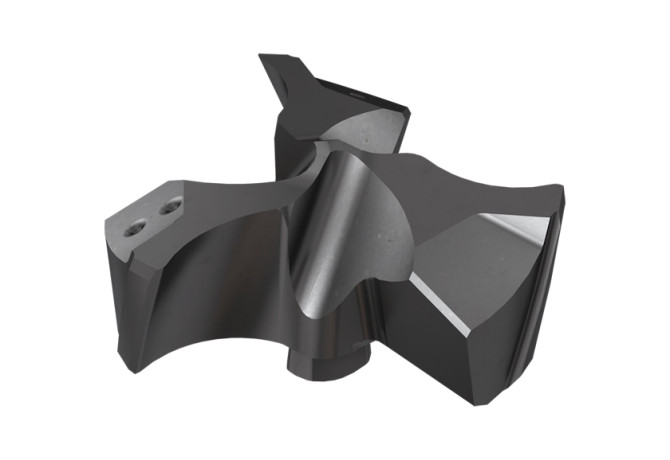

Главная Каталог продукции Toolunited 12 203-01 - Replaceable insert with chip flute F3P 195-IQ IC908

F3P 195-IQ IC908

Артикул: 3396154

В наличии

В корзину

Описание

Характеристики

COATN Coating

TiAlN

COMPC Company code

IS - Iscar

DC Cutting diameter

19.5 mm

Delivery state valid from

4/1/2022

DIN

IS-178362946128670

FamilyProducts

Exchangeable 3 Flute Flat Drilling Heads for Machining Carbon and Alloy Steel (ISO P) and Cast Iron (ISO K)

GRDMFG Grade manufacturers designation

IC908

ID Technical product number

3396154

Interface codes

J6 / J61

ISO

IS$$178362946128670

ISYC Subclass

203-01 - Replaceable insert with chip flute

LOC-03 ISO

IS$$178362946128670

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IS-178362946128670

LPR Protruding length

8.09 mm

Name Identifying order number

F3P 195-IQ IC908

PL Point length

1.27 mm

SIG Point angle 1st step

131 Degree

Working process

No working processes available
