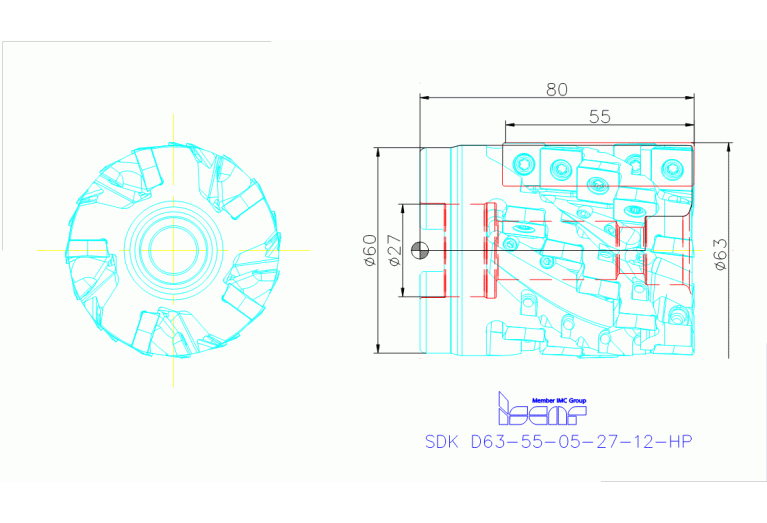

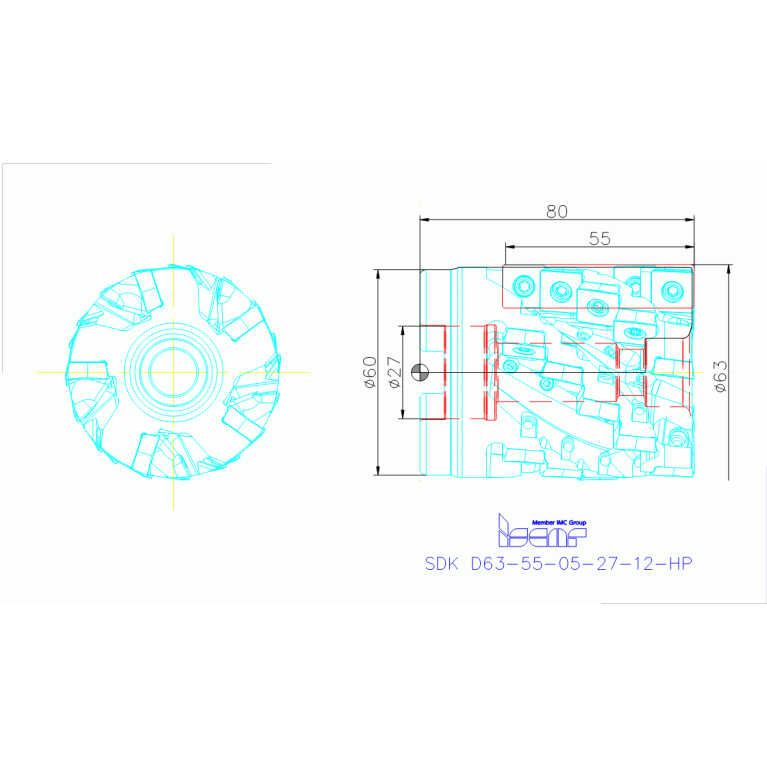

SDK D63-55-05-27-12-HP

Артикул: 3322985

В наличии

В корзину

Описание

Характеристики

BI Block index

CCONMS Connection count machine side

COMPC Company code

IS - Iscar

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DHUB Hub diameter

60 mm

DIN

FDA0270220

FamilyProducts

Extended Flute Shell Mills Carrying SDHT 1205... Inserts

HAND Cutting direction

R - Right

ID Technical product number

3322985

Interface codes

J6 /

ISYC Subclass

308-04 - Shell milling cutter

LOC-01 BI Block index

LOC-01 MIID Master insert identification

SDHT 1205

LOC-01 ISO

IS$$176675914863470

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-176675914863470

LOC-02 BI Block index

LOC-02 MIID Master insert identification

SDHT 1205

LOC-02 ISO

IS$$552917512988170

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-552917512988170

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA0270220

MIID Master insert identification

SDHT 1205

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

SDK D63-55-05-27-12-HP

OAL Overall length

80 mm

Working process

No working processes available

WT Weight of item

0.94 kg
