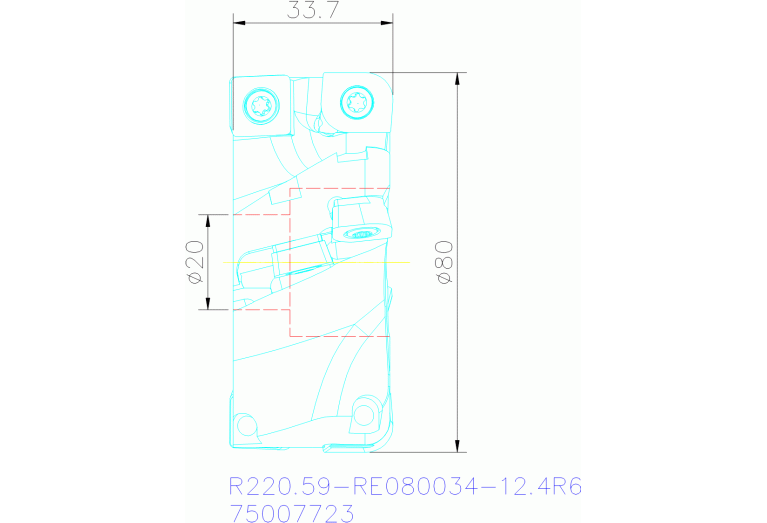

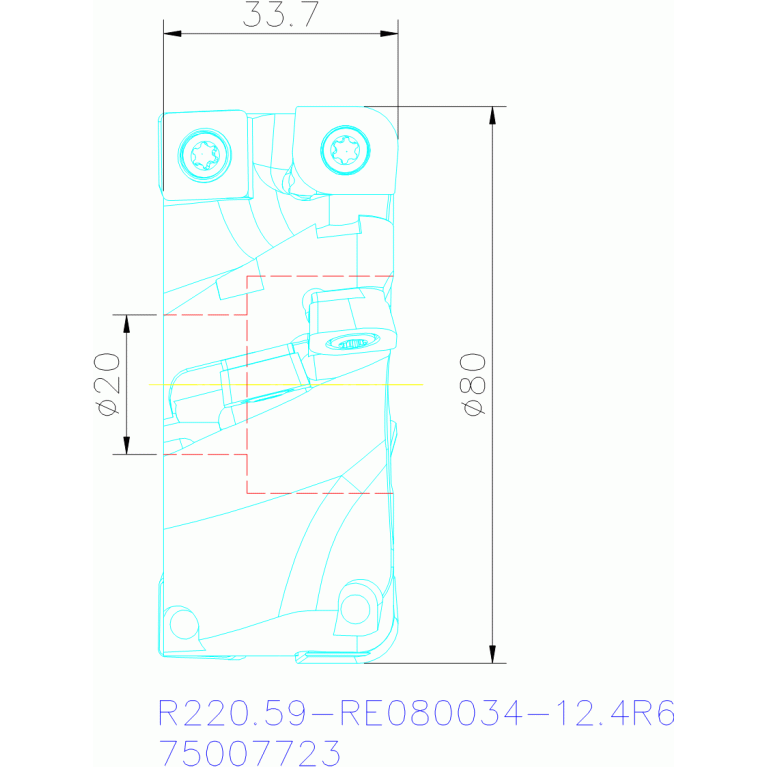

Главная Каталог продукции Toolunited 12 308-04 - Shell milling cutter R220.59-RE080034-12.4R6

R220.59-RE080034-12.4R6

R220.59-RE080034-12.4R6 R220.59-RE080034-12.4R6 R220.59-RE080034-12.4R6

R220.59-RE080034-12.4R6

Seco
Артикул: 75007723
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
7 Degree
A2B Clearance angle major Pos. B
7 Degree
B1A Cutting edge length Pos. A
12.7 mm
B1B Cutting edge length Pos. B
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
6.35 mm
C1B Insert thickness Pos. B
6.35 mm
CCONMS Connection count machine side
0
CDX Cutting depth maximum
33.7 mm
CICT Cutting item count
10
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
33.7 mm
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1.2 mm
D1B Corner radius Pos. B
1.2 mm
D6A Wiper edge length Pos. A
0 mm

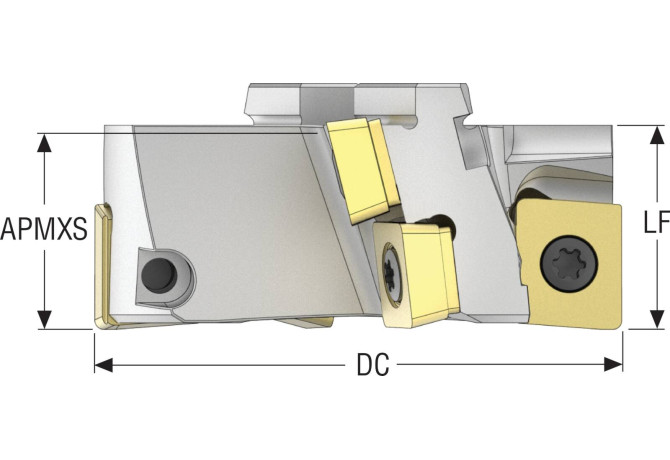

DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
FamilyProducts
R220.59-RE080034-12.4R6
GAMF Rake angle radial
-4 Degree
GAMP Rake angle axial
-12 Degree
ID Technical product number
75007723
Interface codes
/
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
308-04 - Shell milling cutter
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
R220.59-RE080034-12.4R6
OAL Overall length
33.7 mm
RPMX Rotational speed maximum
6500 1/min
Working process
No working processes available
WT Weight of item
0.524 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
4
