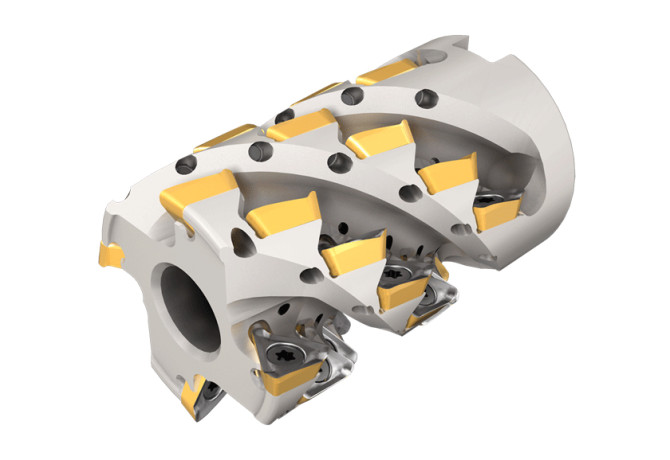

Главная Каталог продукции Toolunited 12 308-04 - Shell milling cutter HM390 SM D050-49-5-22-10

HM390 SM D050-49-5-22-10

Артикул: 3322871

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DHUB Hub diameter

48.8 mm

DIN

FDA02202210

FamilyProducts

Extended Flute Shell Mills Carrying HM390 TPKT 1003 Triangular Inserts with 3 Helical Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3322871

Interface codes

J6 /

ISYC Subclass

308-04 - Shell milling cutter

LOC-02 BI Block index

LOC-02 MIID Master insert identification

HM390 TPKT 1003

LOC-02 ISO

IS$$607697345849240

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-607697345849240

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202210

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

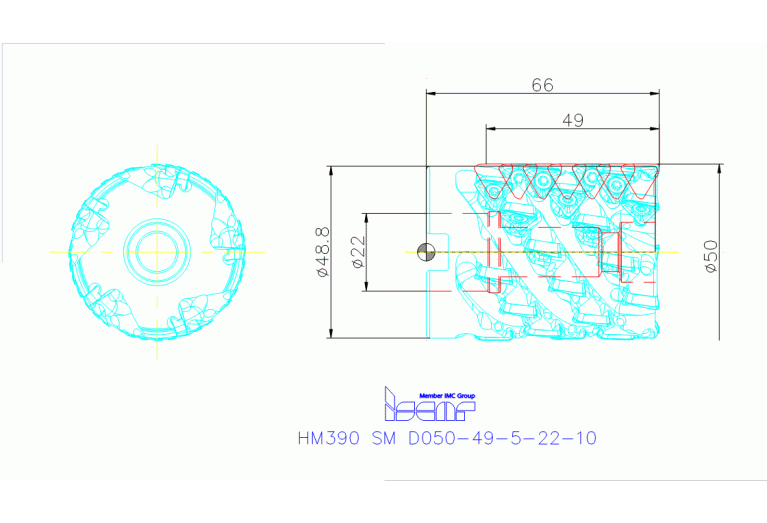

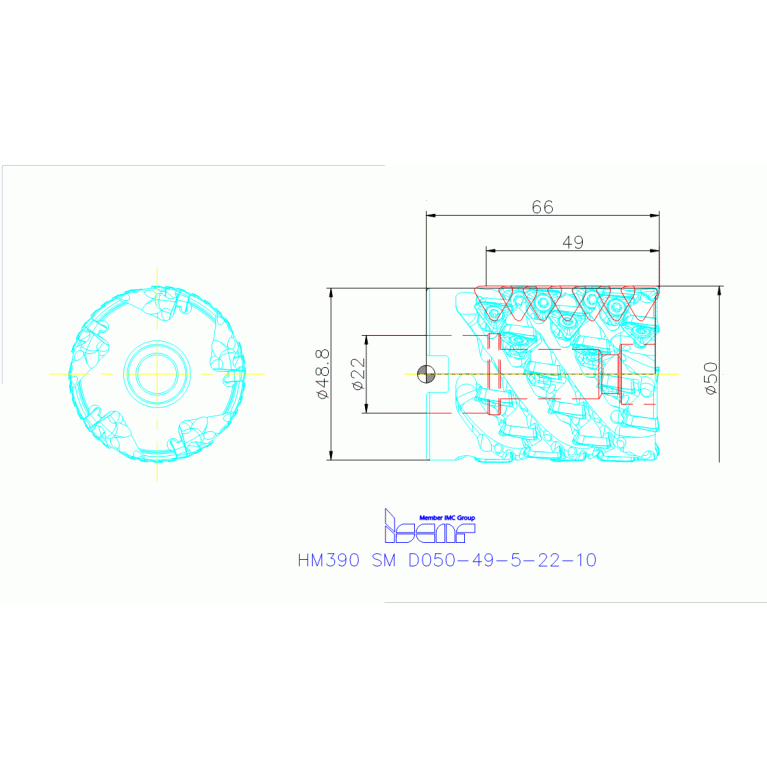

HM390 SM D050-49-5-22-10

OAL Overall length

66 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.58 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
