Главная Каталог продукции Toolunited 12 309-02 - Turning tool for external threading SEL 2020X16TT-JHP-MC

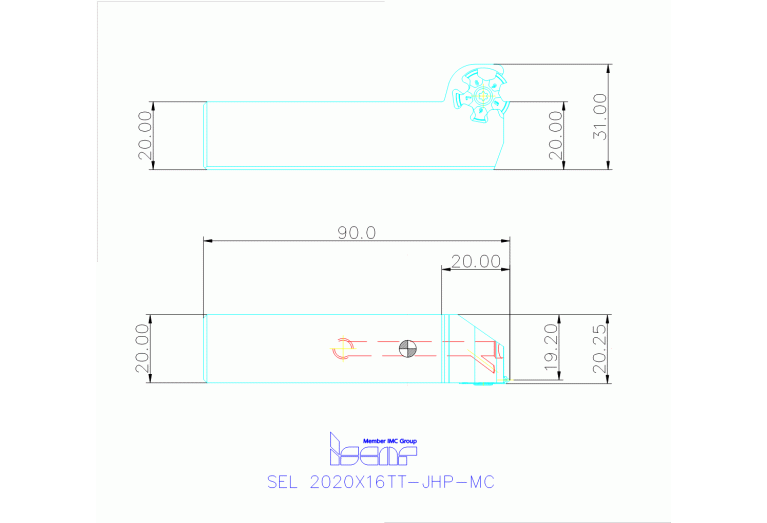

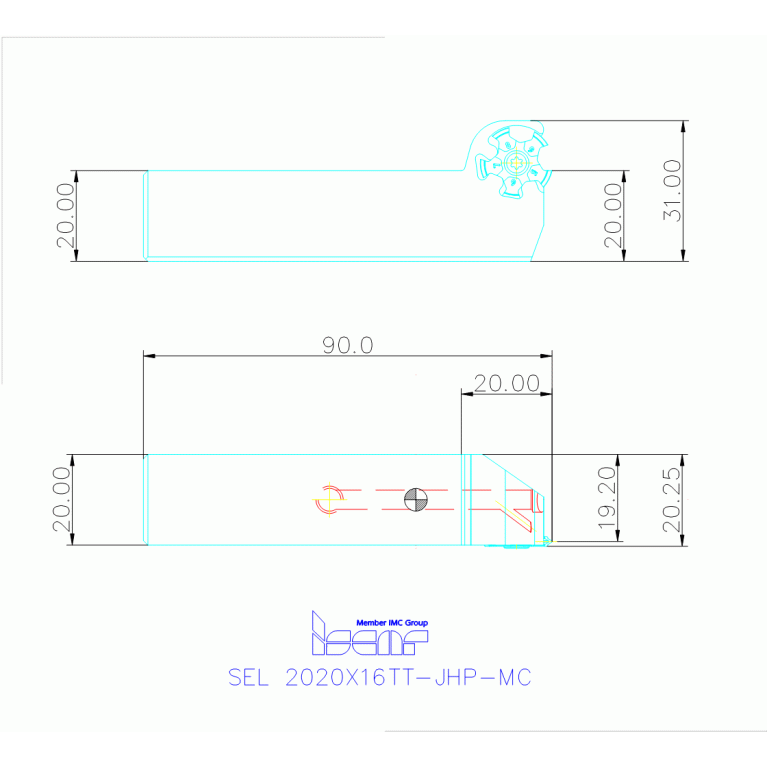

SEL 2020X16TT-JHP-MC

Артикул: 3328033

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

COMPC Company code

IS - Iscar

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN CSW1

IS-253513667294470

FamilyProducts

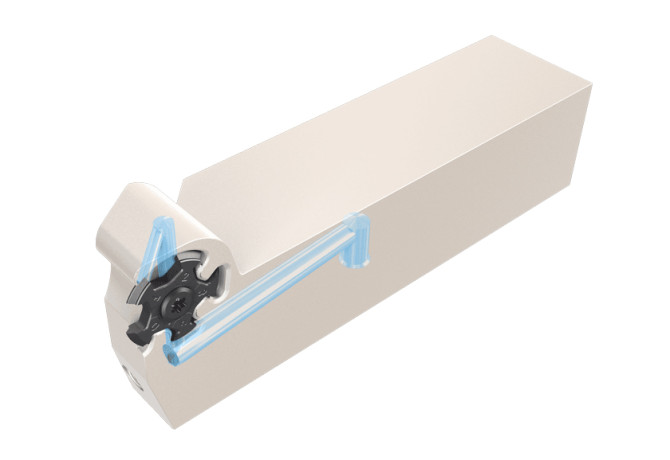

External Threading Tools with Bottom Inlet Coolant Channels, Carrying Inserts with 10 Threading Corners

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

3328033

Interface codes

Interface codes CSW1

J41 / J441

ISO CSW1

IS$$253513667294470

ISYC Subclass

309-02 - Turning tool for external threading

LF Functional length

90 mm

LH Head length

20 mm

LOC-03 B Shank width

20 mm

LOC-03 H Shank height

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

SEL 2020X16TT-JHP-MC

OAL Overall length

90 mm

WF Functional width

20.25 mm

Working process

No working processes available
