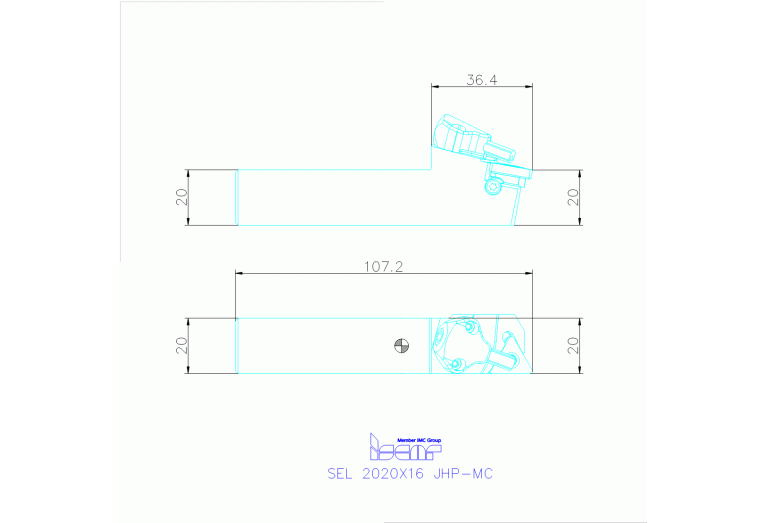

SEL 2020X16 JHP-MC
SEL 2020X16 JHP-MC
Артикул:
3331270
В наличии
Характеристики
CEDC Cutting edge count
1
COMPC Company code
IS - Iscar
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN CSW1
IS-252930661445850
FamilyProducts
External Threading Tools with Bottom Inlet Coolant Channels
HAND Cutting direction
L - Left
HF Functional height
20 mm
ID Technical product number
3331270
Interface codes
/
Interface codes CSW1
J41 / J441
ISO CSW1
IS$$252930661445850
ISYC Subclass
309-02 - Turning tool for external threading
LF Functional length
107 mm
LH Head length
36.2 mm
LOC-03 B Shank width
20 mm
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
Name Identifying order number
SEL 2020X16 JHP-MC
OAL Overall length
107 mm
WF Functional width
20 mm
Working process
No working processes available
WT Weight of item
0.15 kg
