Главная Каталог продукции Toolunited 12 309-09 - System tool for internal turning KAVH25-SVUBR11

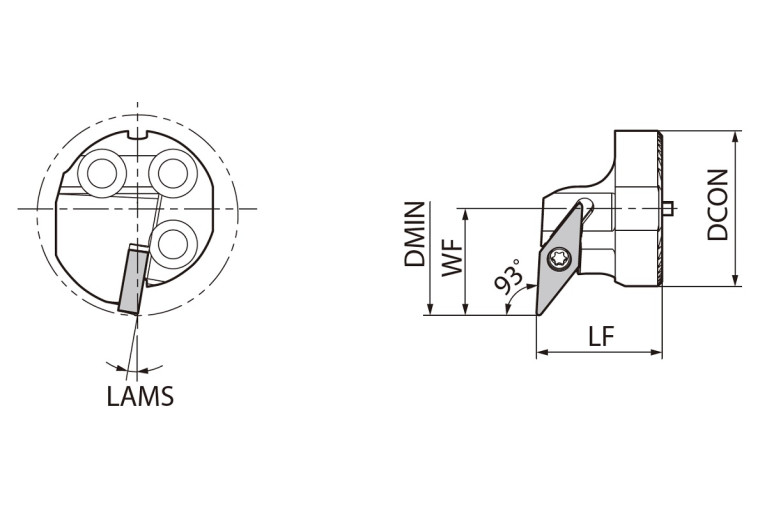

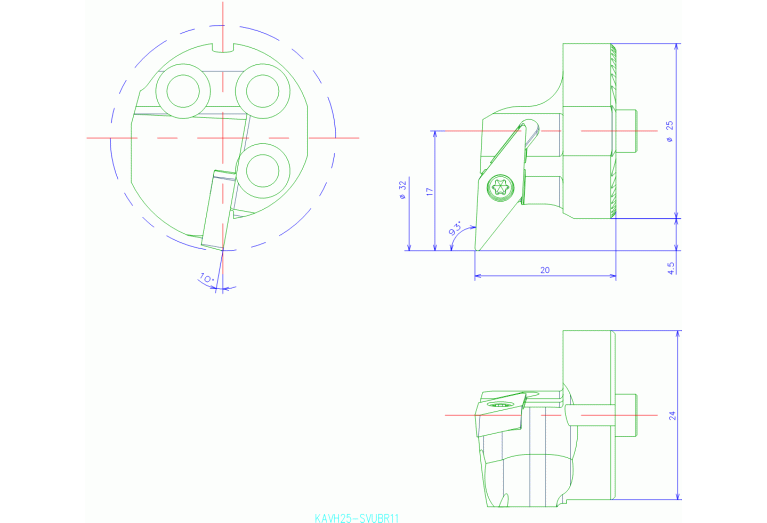

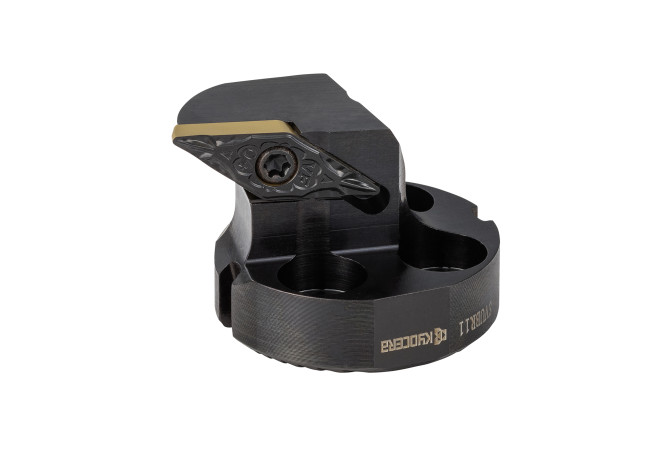

KAVH25-SVUBR11

KAVH25-SVUBR11 KAVH25-SVUBR11 KAVH25-SVUBR11 KAVH25-SVUBR11

KAVH25-SVUBR11

Kyocera
Артикул: THC15289
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.18 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCC Design configuration style code
S - Solid steel, no construction features
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6/1/2023
DIN
CMS02500197
DIN CSW1
VB1103043L
DMIN Minimum bore diameter
32 mm
END KAPP End chamfer
1
END KAPP ANGLE Kappungswinkel
30 Degree
END KAPP DIST End chamfer distance
1.64 mm
EPSR Insert included angle
35 Degree
FamilyProducts
Anti-vibration Boring Bar Head KAVH
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
THC15289
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11.071 mm
LAMS Inclination angle
-10 Degree
LF Functional length
20 mm
LH Head length
12.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
7 Serrated connection
LOC-03 CCTMS Connection code type
CMS Coromant Modular boring SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CMS02500197
LPR Protruding length
20 mm
LTA Length tool assembly
20 mm
MIID Master insert identification
VBMT110304HQ
Name Identifying order number
KAVH25-SVUBR11
OAL Overall length
23 mm
THSC Tool holder shape code
A - offset shank design
WF Functional width
17 mm
Working process
DDA - External turning,DDB - External and internal turning,DDI - Internal turning
WT Weight of item
0.035 kg
