Главная Каталог продукции Toolunited 12 309-09 - System tool for internal turning KAVH16-SDUCR07

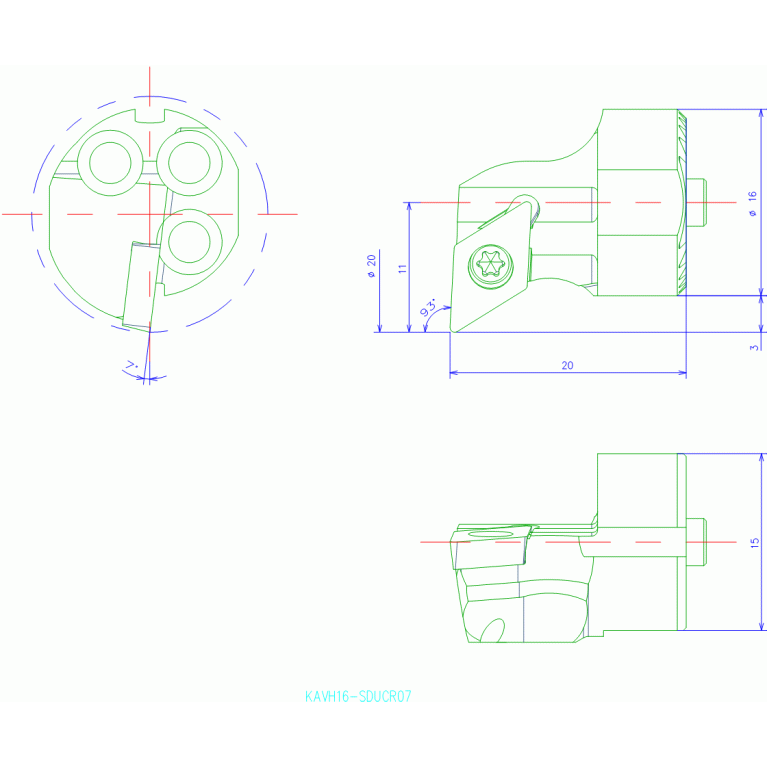

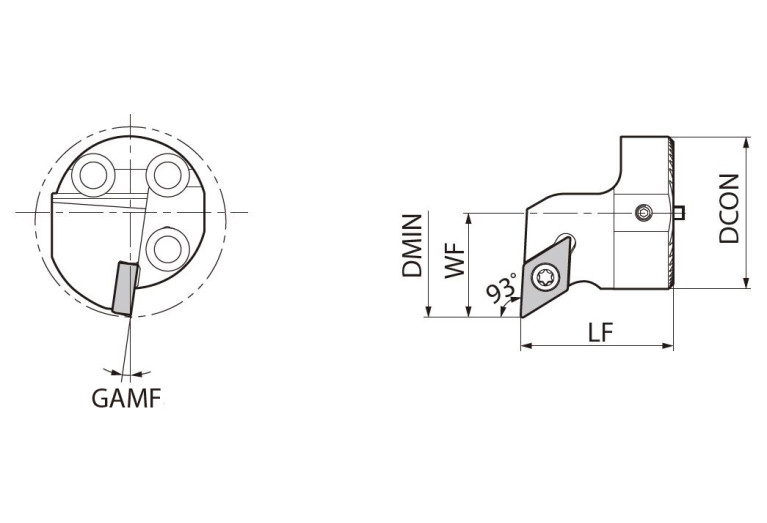

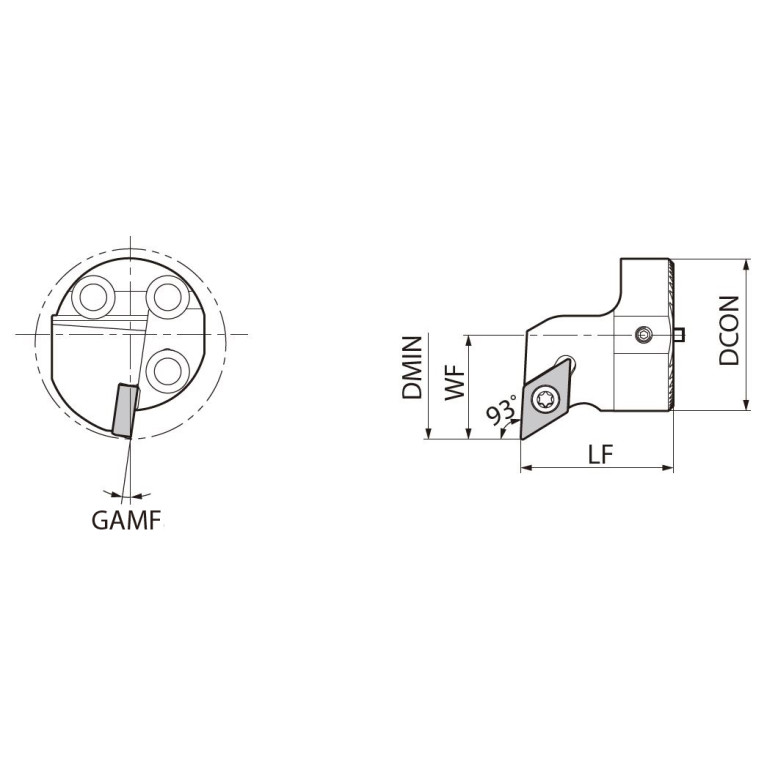

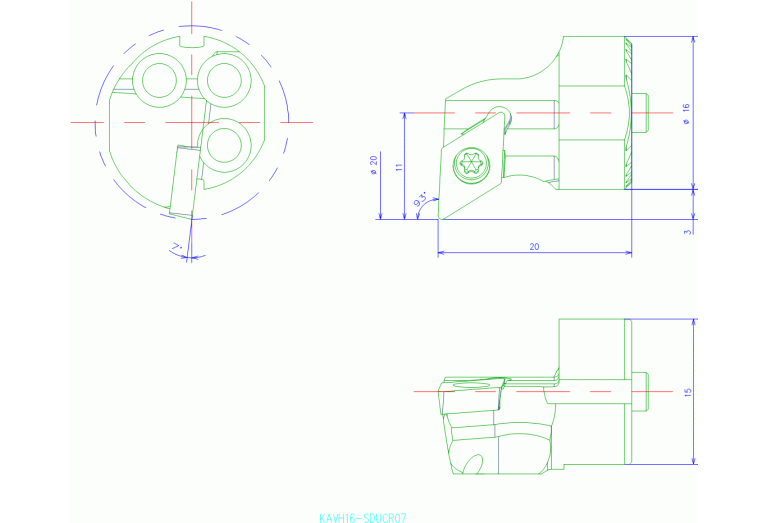

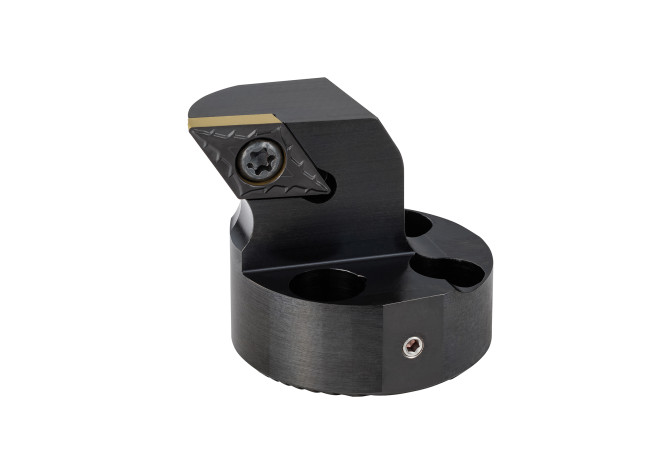

KAVH16-SDUCR07

KAVH16-SDUCR07

Kyocera

Артикул: THC15271

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

7 Degree

B3A Inscribed circle diameter Pos. A

6.35 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

2.38 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KYO - Kyocera

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.4 mm

DCC Design configuration style code

S - Solid steel, no construction features

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/1/2023

DIN

CMS01600197

DIN CSW1

DC0702043L

DMIN Minimum bore diameter

20 mm

END KAPP End chamfer

1

END KAPP ANGLE Kappungswinkel

30 Degree

END KAPP DIST End chamfer distance

1.47 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Anti-vibration Boring Bar Head KAVH

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

THC15271

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-09 - System tool for internal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

7.752 mm

LAMS Inclination angle

-7 Degree

LF Functional length

20 mm

LH Head length

12.5 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

7 Serrated connection

LOC-03 CCTMS Connection code type

CMS Coromant Modular boring SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS01600197

LPR Protruding length

20 mm

LTA Length tool assembly

20 mm

MIID Master insert identification

DCMT070204

Name Identifying order number

KAVH16-SDUCR07

OAL Overall length

23 mm

THSC Tool holder shape code

A - offset shank design

WF Functional width

11 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning

WT Weight of item

0.013 kg
