Главная Каталог продукции Toolunited 12 401-00 - Adaptive item converter, extender, reducer unspecified C4-DTA-32A-2.5D

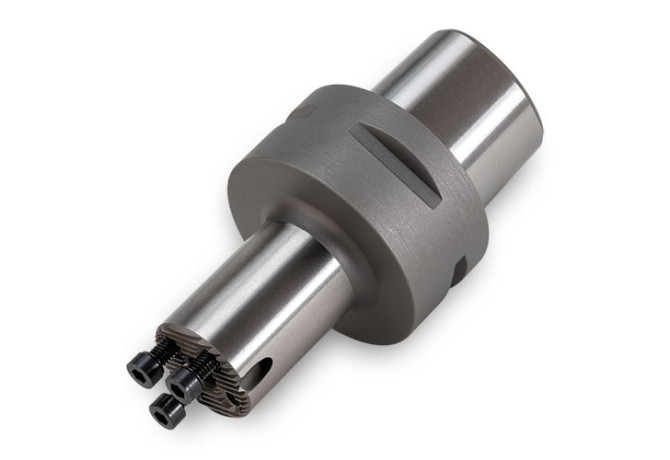

C4-DTA-32A-2.5D

Артикул: 6342327

В наличии

В корзину

Описание

Характеристики

BD Body diameter

32 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCONWS Diameter

32 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/15/2023

DIN

CCS04000195

FamilyProducts

C-DTA

HAND Cutting direction

N - Neutral

ID Technical product number

6342327

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

55 mm

LOC-01 DCONWS Diameter

32 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

IL-K-1381

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR Protruding length

75 mm

Name Identifying order number

C4-DTA-32A-2.5D

WT Weight of item

0.615 kg
