Главная Каталог продукции Toolunited 12 401-00 - Adaptive item converter, extender, reducer unspecified BT40-UMC2.76-0750

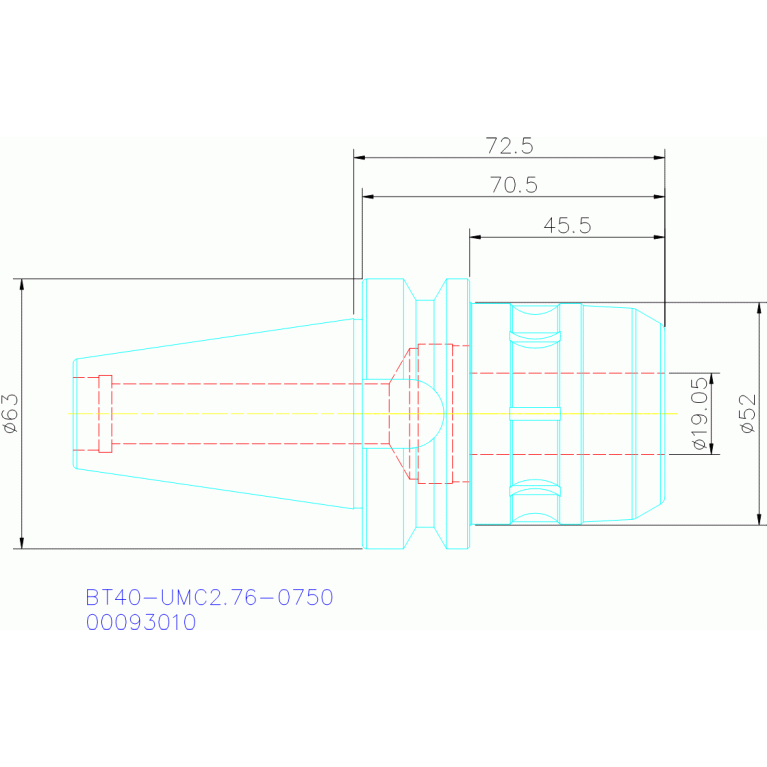

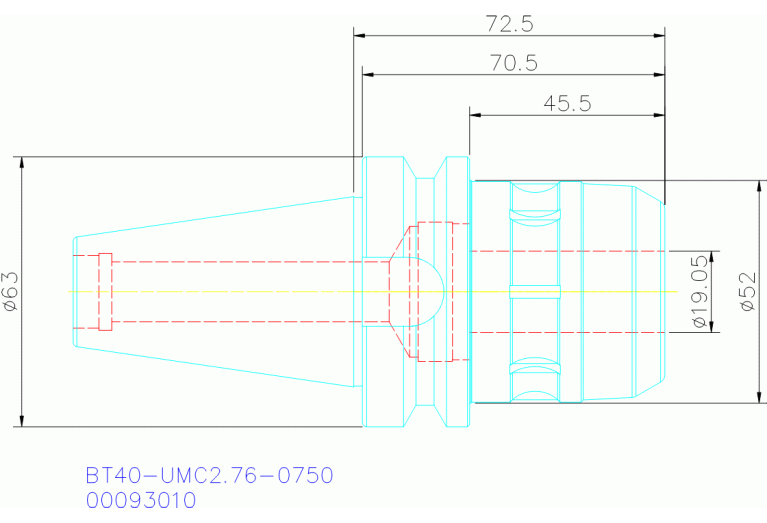

BT40-UMC2.76-0750

Артикул: 00093010

В наличии

В корзину

Описание

Характеристики

BD Body diameter

52 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DCONWS Diameter

3.175 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/22/2022

FamilyProducts

BT40-UMC2.76-0750

ID Technical product number

00093010

Interface codes

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LOC-01 DCONWS Diameter

3.175 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

70 mm

Name Identifying order number

BT40-UMC2.76-0750

OAL Overall length

135.4 mm
