Главная Каталог продукции Toolunited 12 307-07 - Non-centre cutting multiple rows end mill R217.81-3250.3S-068-SNAC15.2

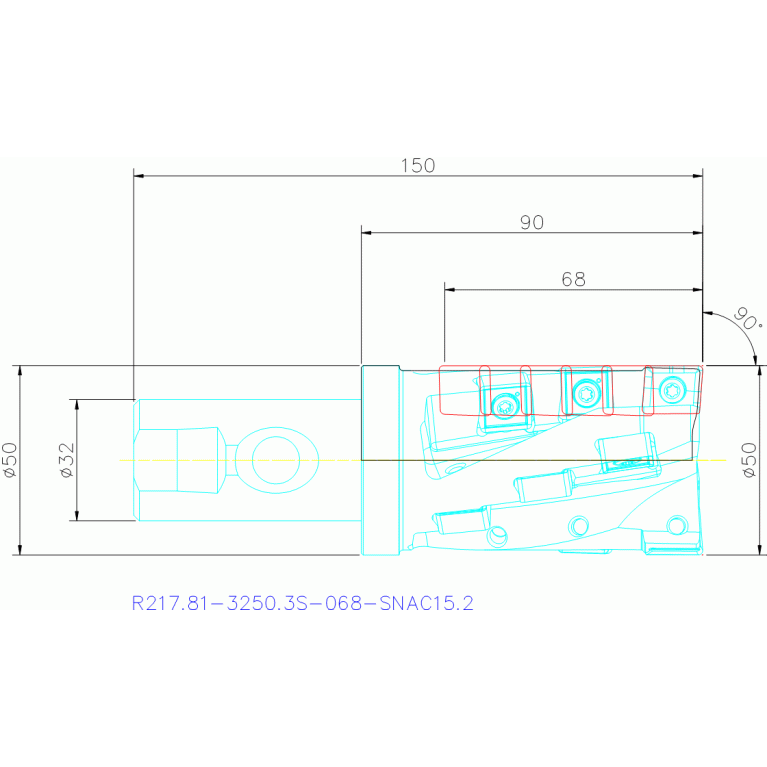

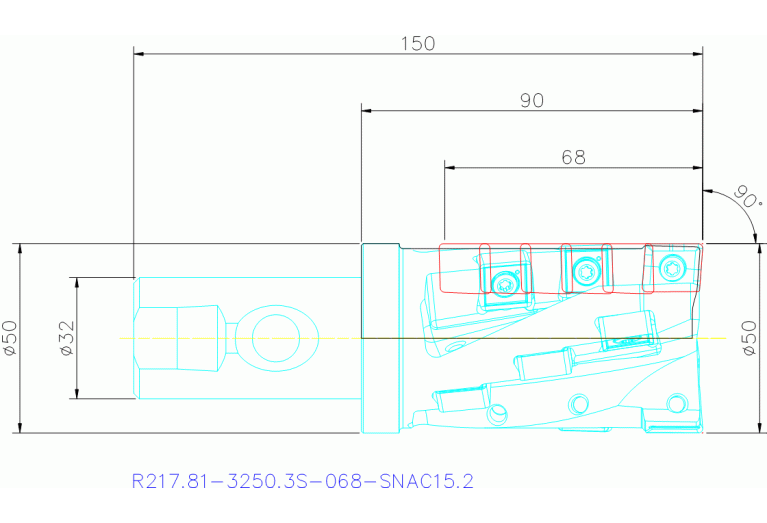

R217.81-3250.3S-068-SNAC15.2

Артикул: 10127496

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

68 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL03201405

FamilyProducts

R217.81-3250.3S-068-SNAC15.2

GAMF Rake angle radial

-9.25 Degree

GAMP Rake angle axial

-8.5 Degree

HAND Cutting direction

R - Right

ID Technical product number

10127496

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-AC1506 3R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201405

LPR Protruding length

90 mm

LS Shank length

60 mm

LU Usable length

79 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R217.81-3250.3S-068-SNAC15.2

OAL Overall length

150 mm

RMPX Ramping angle maximum

0 Degree

RPMX Rotational speed maximum

8300 1/min

Working process

No working processes available

WT Weight of item

1.058 kg

ZEFP Peripheral effective cutting edge count
